Beschreibung
SPECIFICATIONS
Brand Name: SANNCE
Certification: CE
Hign-concerned Chemical: None
Model Number: DT81BC+54EE
Origin: Mainland China
PCS of Camera: 4PCS
Resolution: 2MP
Smart home platform: None












DVR | ||
Video & Audio |
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Video Input |
8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps) |
|
Video Output |
HDMI up to 1080p/60 Hz |
|
Audio Input/Output |
0/8-ch via coaxial cable |
|
Supported Camera Types |
1080p@15 fps, 720p@15 fps, |
|
Analog HD Playback Resolution |
1080P Lite(960×1080)/720p(1280×720)@15fps |
|
IP Camera Input |
2-CH |
|
IPC Recording Resolution |
Up to 5MP |
|
Max Playback Channel |
8CH(1080 lite) |
|
Human Detection |
Support |
|
Vehicle Detection |
Support |
|
ONVIF |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 4TB capacity (3.5 inch) |
|
External Interface |
Network Interface |
RJ45×1(10/100) |
USB |
USB 2.0×2 |
|
General |
Working Temperature |
14 °F – 113 °F/-10 °C – 45 °C |
Dimensions (W X H X D) |
193×195×43mm |
|
Weight |
≤1Kg |
|
Operating Power |
DC12V,≤ 18W |
|
HD Camera | ||

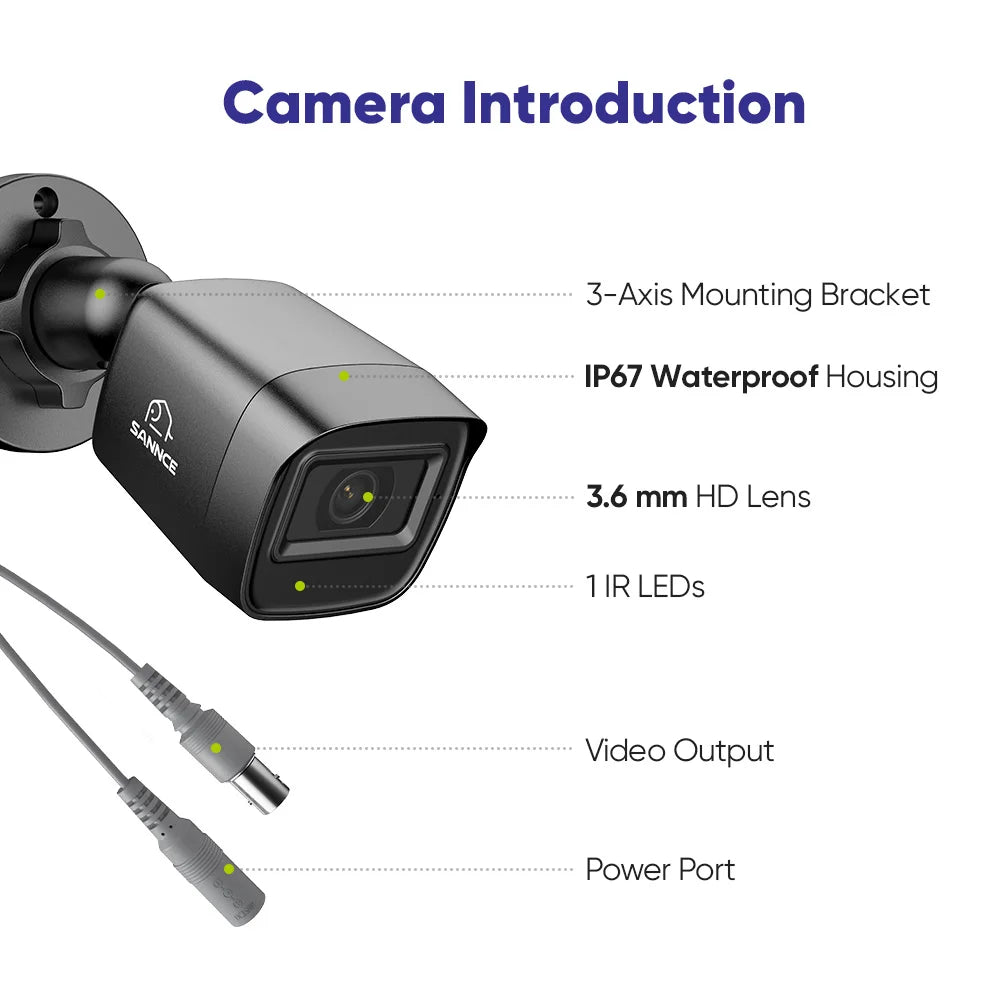

Camera |
Image Sensor |
2MP CMOS Image Sensor |
Video Resolution |
1920 (H) X 1080 (V) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
PAL: 1080p@25 fps NTSC: 1080p@30 fps |
|
Lens |
3.6 mm |
|
Min. Illumination |
Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on |
|
Angle of View |
horizontal FOV: 73°, vertical FOV: 39°, |
|
Number of Infrared LEDs |
1 |
|
Night Vision Distance |
Up to 66ft/20 m |
|
DNR |
2D DNR |
|
Wide Dynamic Range |
DWDR |
|
IR-Cut Filter |
Yes |
|
Video Output |
HD BNC X1 |
|
General |
Housing |
Plastic |
Color |
Black |
|
Operating Power |
DC 12 V |
|
Operating Temperature |
-40 °F ~ 140 °F/-40 °C ~ 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L X W X H) |
||
Weight |
||
