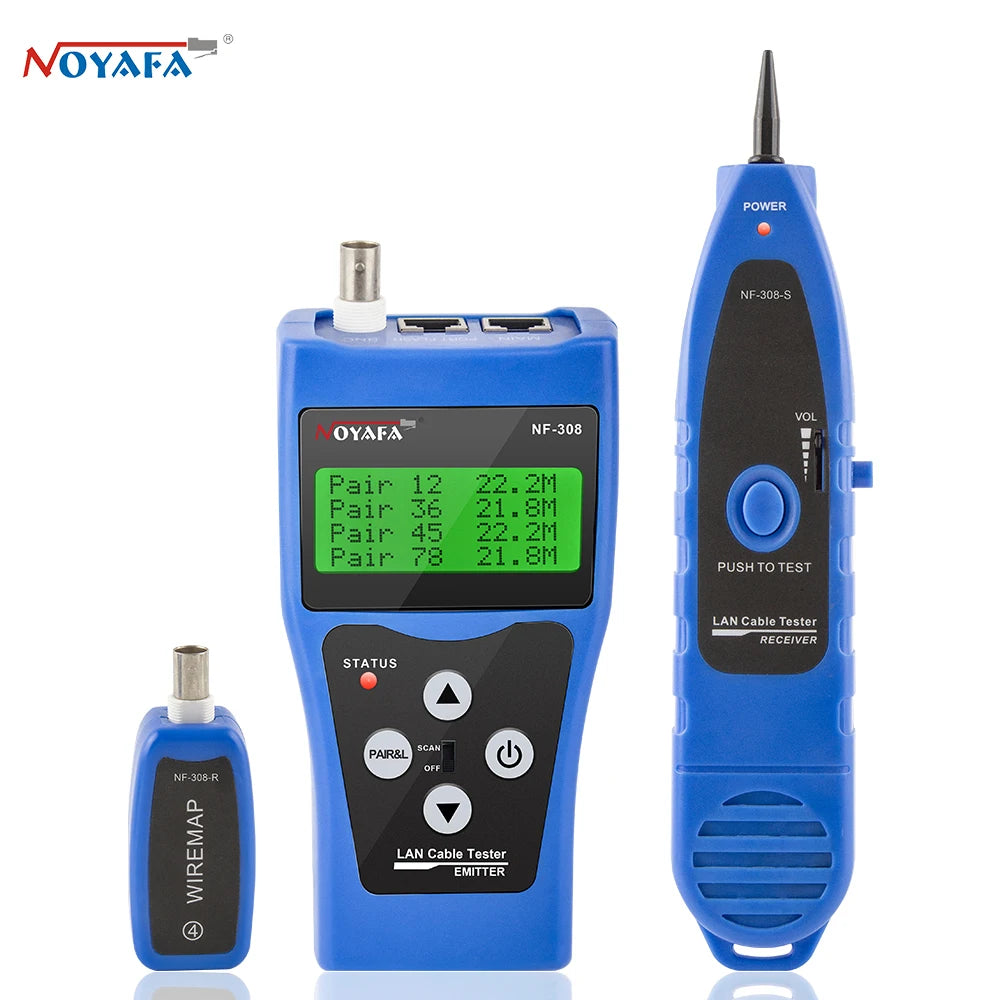

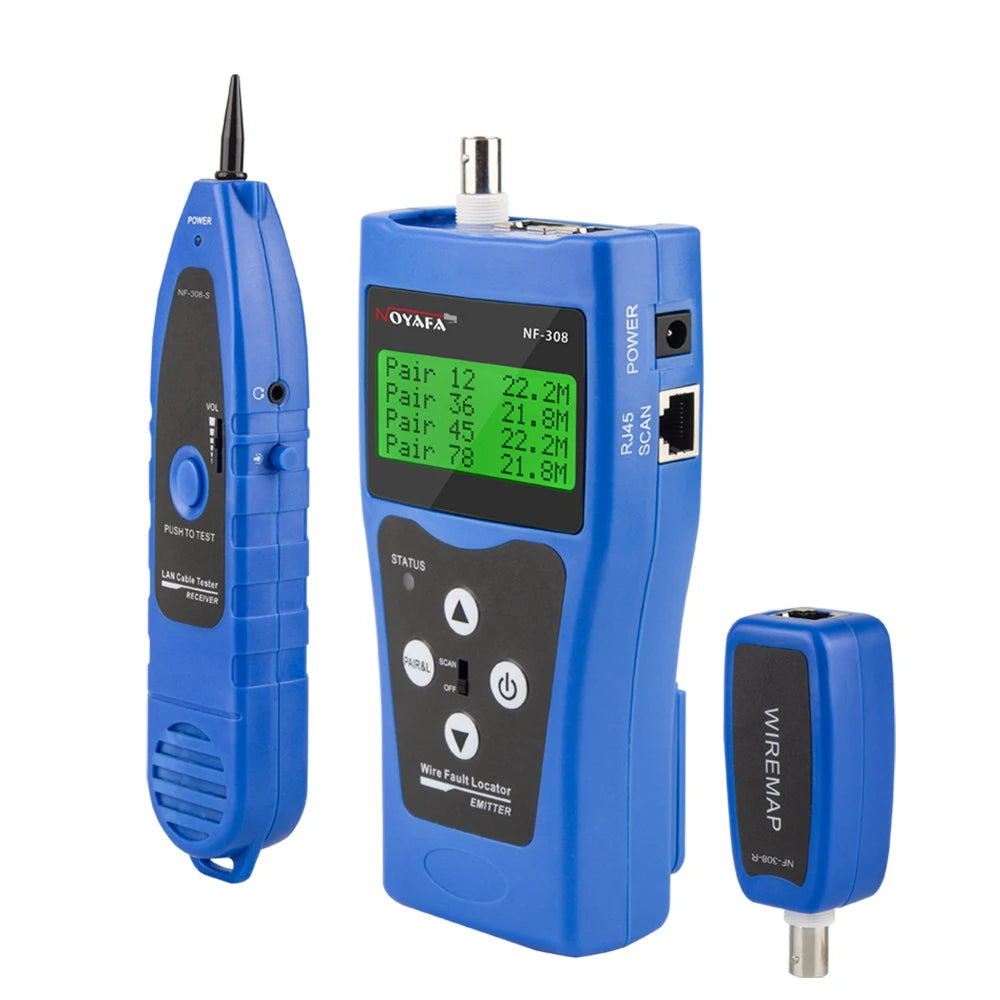

NOYAFA NF-308 Network Cable Tester LAN Measure Length Cables Continuity Test Wire Tracker BNC RJ45 RJ11 Ethernet Cable Tracker

East Supplier PlatformArtikelnummer:1005007419172091-NF-308-Blue-Poland

Color: NF-308-Blue
Preis:
$77.58

Steuern inklusive

Aktie:
Auf Lager ( 197 Einheiten), versandbereit

Beschreibung

SPECIFICATIONS

Brand Name: NOYAFA

Certification: CE

Hign-concerned Chemical: None

Model Number: NF-308

Origin: Mainland China

Package: Yes

Type: Multifunction Network Tester


NF-308 Product parameters


Features:

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.

2. Hub blink for locating network port by  the flashing port light on Hub / Switch.

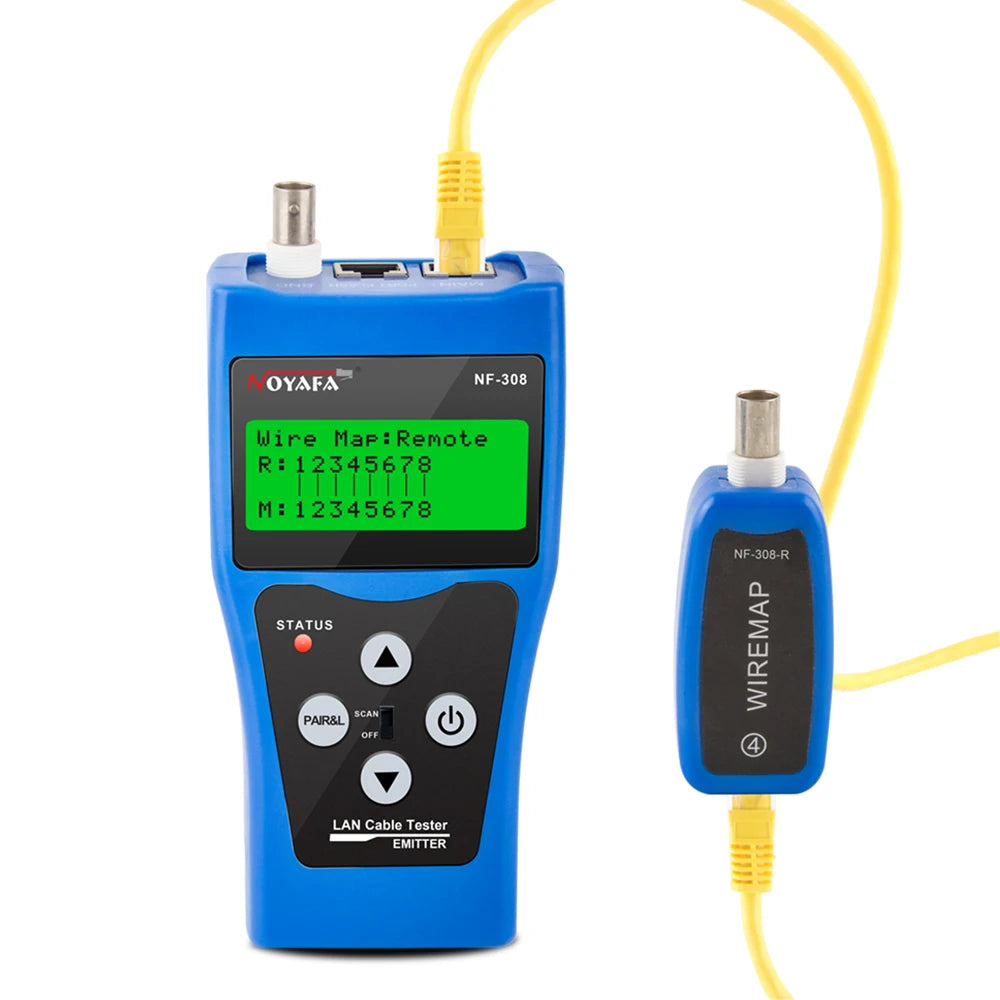

3. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.

4. Locate the wiring or connection error.

5. Measure the length of the network cable up to 1000m and locate the breaking point.

6. polarity test function measure DC voltage (0.5-60 V)

7. Memory and storage for calibration data.

8. Automatically time-delay shut off and Low battery alarm function.




Technical indexes:

(1)NF-308 Transmitter specifications

Indictor:LCD 53x25 mm, with back light

Tone frequency:225 Hz

Max. distance of transmission:2 km

Max. distance of cable map:1 km

Max. working current:Less than 70mA

Tone mode:2 Tone adjustable

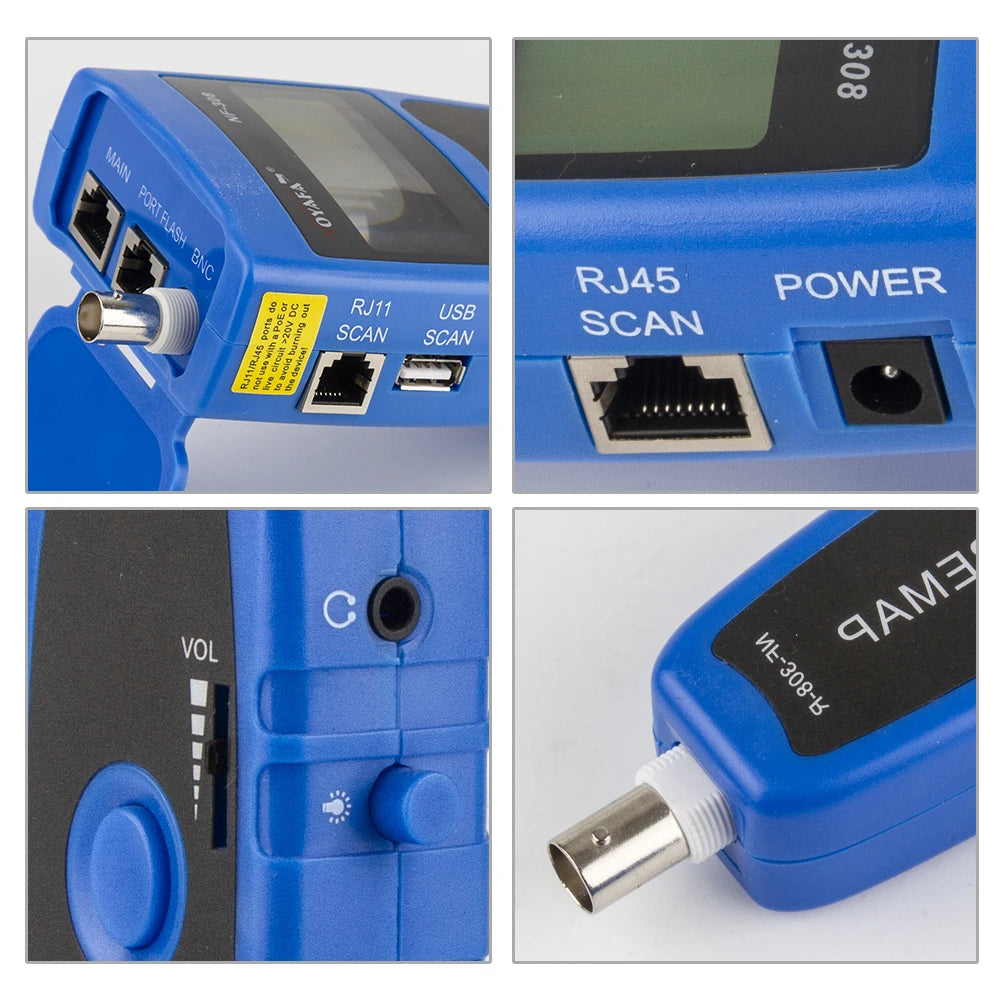

Compatible connectors:RJ11,RJ45,Coacial, USB

Max. signal voltage:15Vp-p

Function selection:3 position buttons & 1 power switch

Function and faults LCD display:LCD display ( wiremap, Tone, short, , No adapter, Low  battery )

Cable map indication:LCD (#1-#8)

Shielded indication:LCD ( #9)

Voltage protection:AC 60V/DC 42V

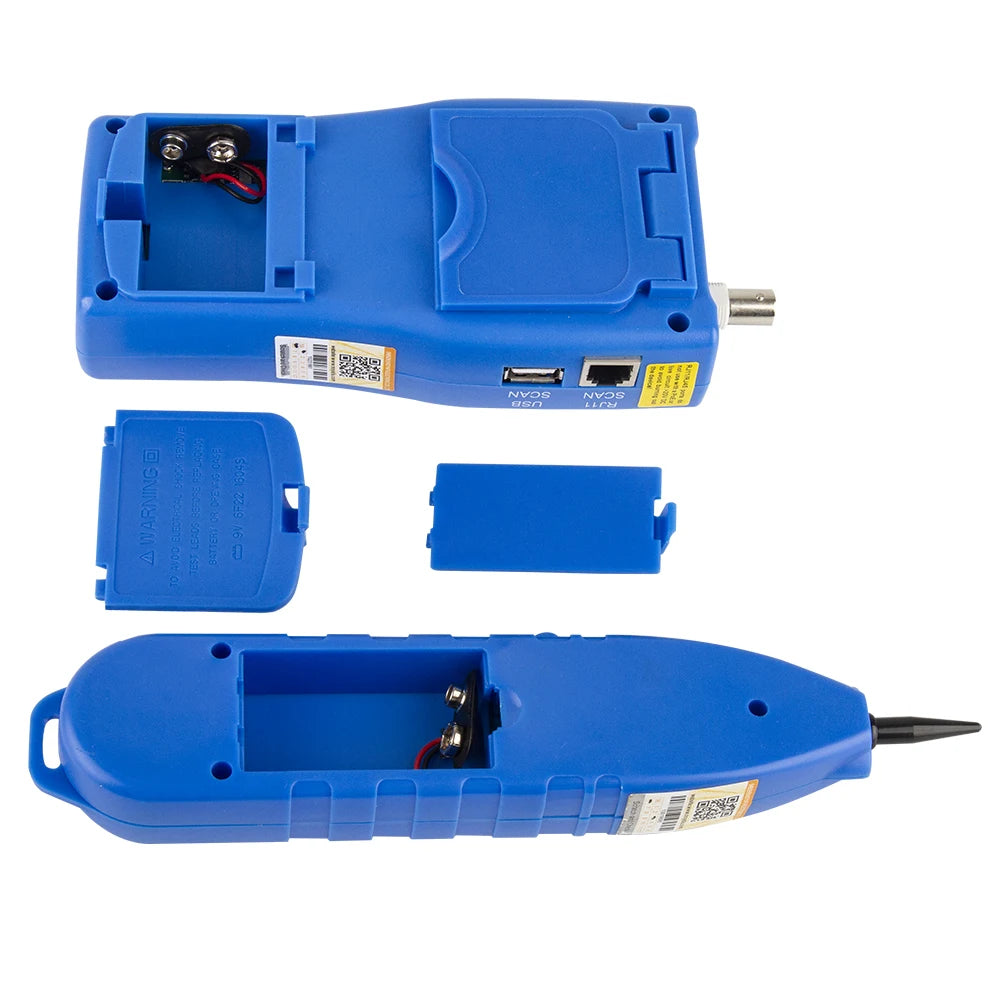

Battery Type:DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)

Dimension(LxWxD):185x80x32mm


(2)NF-308 Receiver specifications

Frequency:225kHz

The Max. working current:Less than 70mA

Battery Type: DC9.0V(NEDA 1604/6F22 DC9V) x1pc

Dimension(LxWxD):218x46x29 mm


(3)NF-308 Remote unit specifications

Compatible connectors: RJ45, BNC

Dimension(LxWxD):107x30x24mm


Attention:

1.Don't connected high voltage lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

Package Include:1X NF-308 wire tracker (battery is not include)
