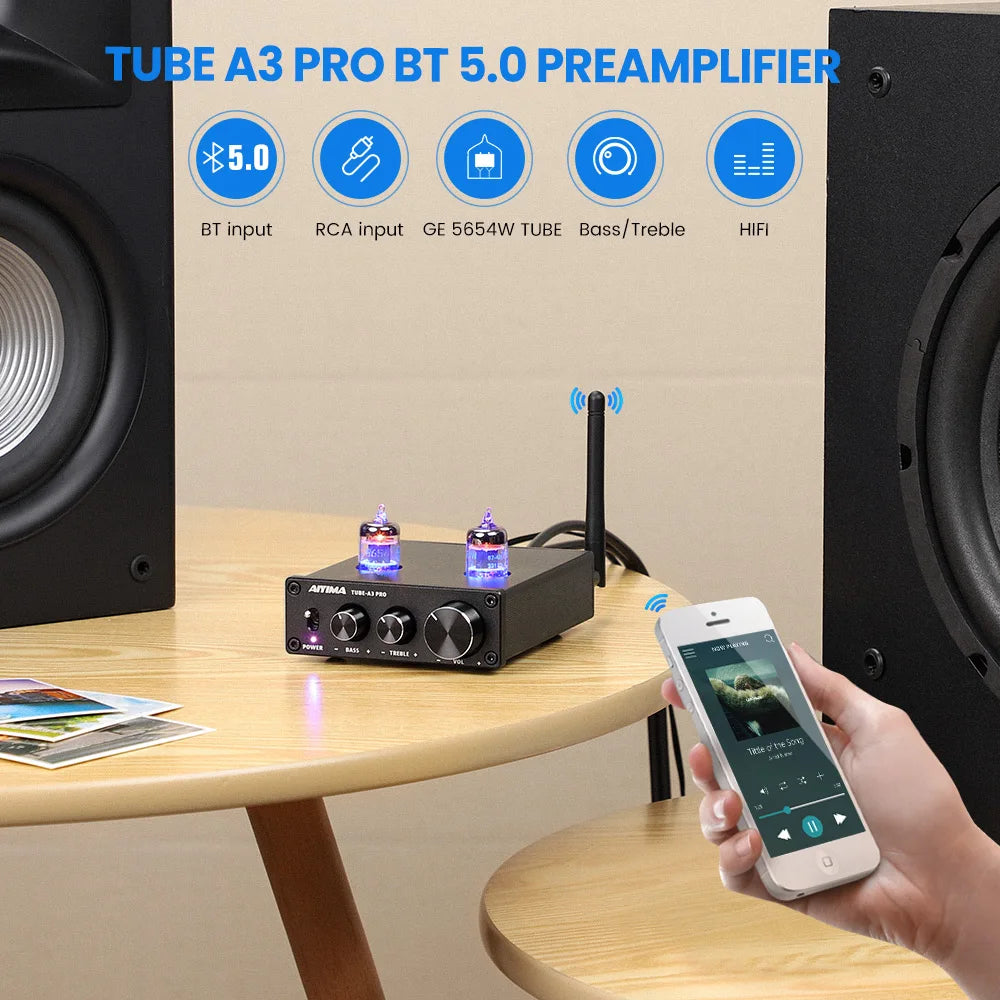

Product description:
The product is a preamplifier. It is not audio amplifier.It needs to be connected to an active speaker and rear amplifier.
Product parameters:
Power supply: DC12V

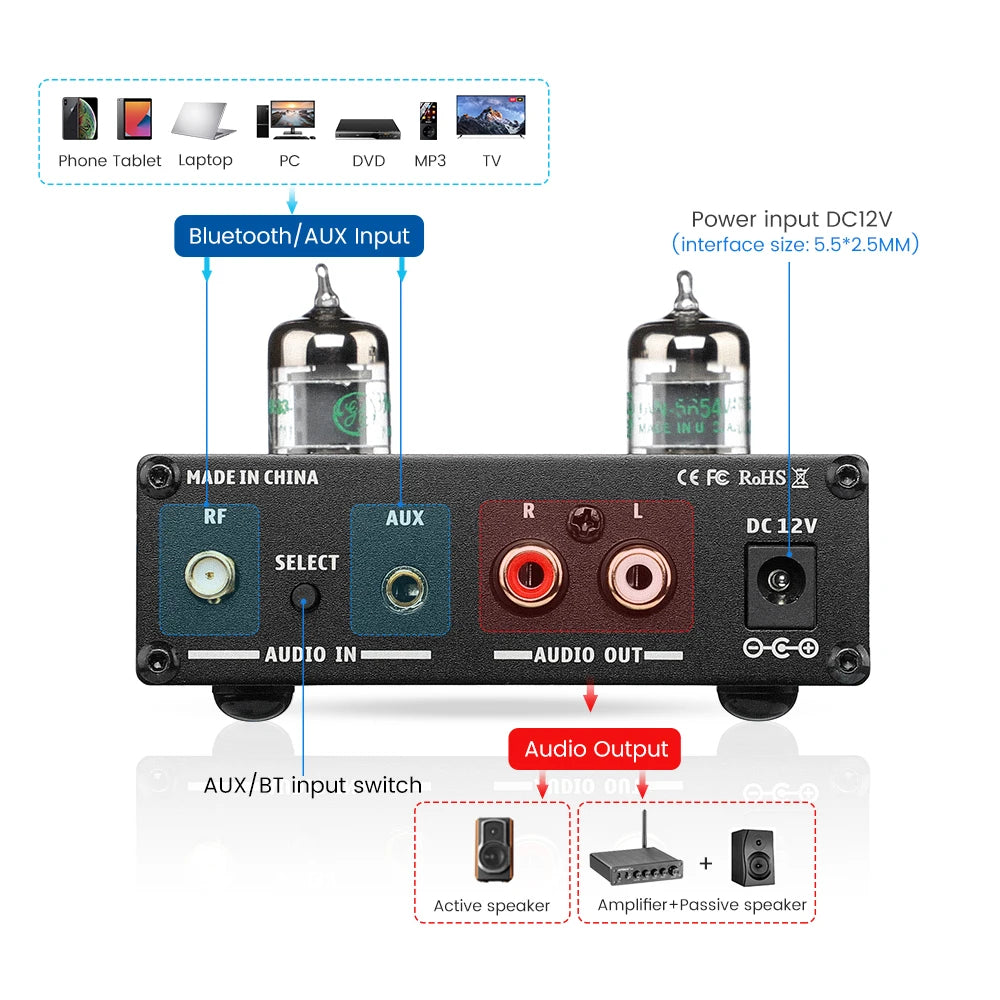

Audio input: Bluetooth/ AUX (connected to MP3, computer CD, DVD, mobile phone, etc. )
Audio output:RCA (connected to amplifier, active speaker and other signal input)
Frequency Response:20Hz-20kHz
SNR:98dB

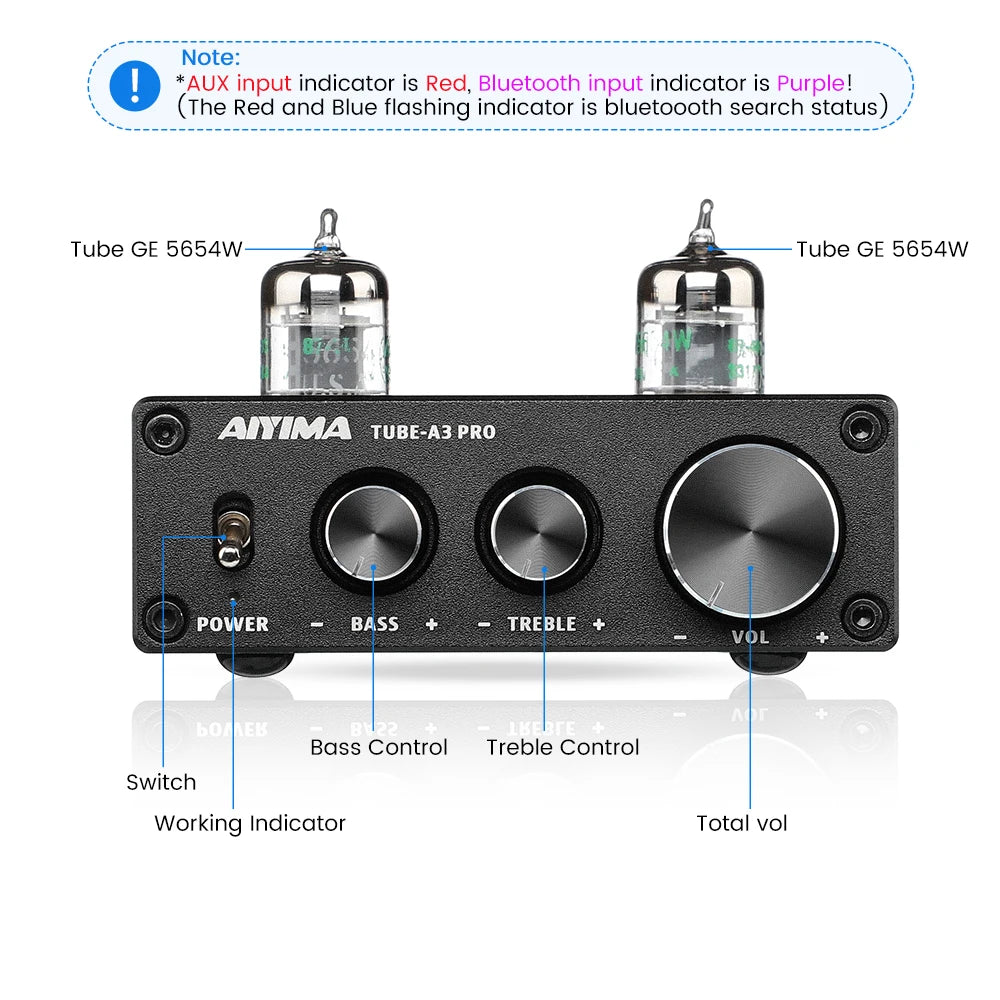

Control:Potentiometer knob and toggle switch
Treble adjustment range:±6dB
Bass adjustment range:±10dB
Size (L*W*H): 137*104*41MM (without tube height)
Tube: 2Pcs GE 5654W
With treble and bass adjustment
Feature:
1. Using original GE 5654W tube, Bluetooth 5.0 version(GE 5654W Tube Upgrade 6J1/6*1/EF95/403A/6AK5/403B/CV4010 403A/403B/EF95
)
2. The main filter capacitor is imported from 1000UF/25V, and the coupling capacitor is imported with 1UF Philips capacitor.
3. The resistor uses a five-ring 1% metal resistor to ensure a good signal-to-noise ratio.
4. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.
5. The output is made of gold-plated RCA lotus seat, which is durable and beautiful!
6. The board layout is reasonable, beautiful, and the current is small.
Note:
1. The product is a preamplifier, not a power amplifier. It should be used with a post-amplifier or an active speaker. It is not allowed to directly connect passive speakers, speakers and earphones to the power amplifier; if it is not used, the car will be burnt if the voltage is unstable.
2, The general audio line or power supply filtering is not good, the probability of the bottom noise current is very large, it is recommended to use a good audio cable or power supply.
3. Make sure that there is no problem with your own audio source. The preamplifier has its own preamplifier function. If the audio source itself has noise, then the preamplifier will only amplify its noise. Please use a good sound source test.
4. Check if the tube is plugged into the base. Please insert the tube and the base. Be sure to insert the tube in case of power failure.
Package included:
1Pcs Tube Amplifier Bile Preamplifier+ 1Pcs DC12V Supply Power
