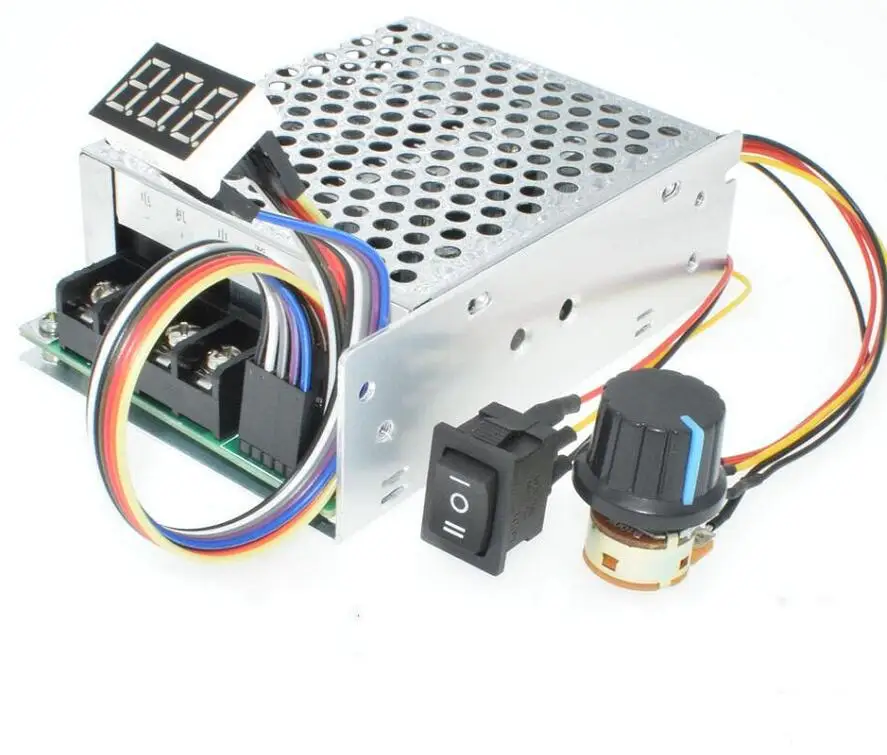

Digital Display 0~100% adjustable DC 10-50V 40A DC Motor Speed Controller PWM 12V 24V 48V 2000W MAX 60A Reversible

East Supplier PlatformArtikelnummer:32847188891-Default Title

Preis:
$24.86

Steuern inklusive

Aktie:
Ausverkauft

Beschreibung

SPECIFICATIONS

Brand Name: TCXRE

Motor Type: DC Motor

Hign-concerned Chemical: None

Origin: Mainland China

RM1307731645734421

Input voltage: DC10-55V (equal to the rated voltage of the motor)    Output voltage: Linear under load
Maximum current: 60A                                                                 Continuous current: 40A
Speed Type: adjusting flow                                                           Speed mode: potentiometer (linear)
Support motor: DC brush motor                                                     forward reverse: support
Speed range: 0--100%                                                                 Control frequency: 15KHZ
Wiring type: Terminal knob                                                           Specifications: 100K (with switch)
Connection Type: Barrier Terminal Product                                      Weight: 249 grams

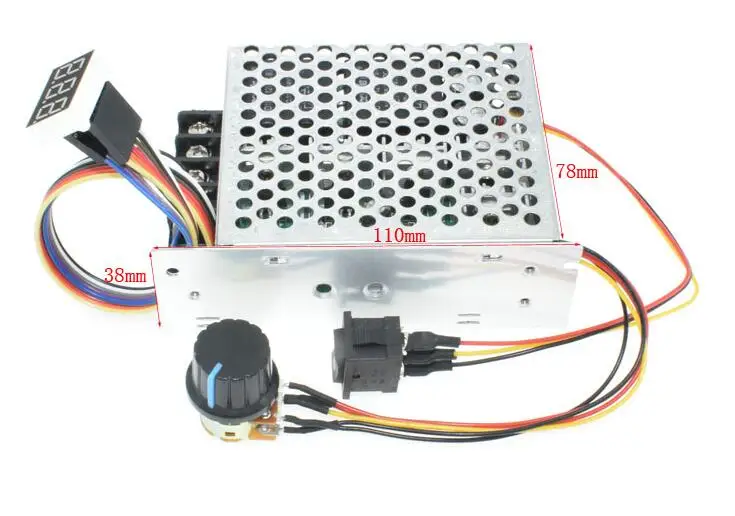

Motherboard size: 100MM * 76MM * 28MM                                     Shell size: 110 * 78 * 38MM
Note: The digital display is the full speed percentage of the motor 0-100 not the motor actual speed

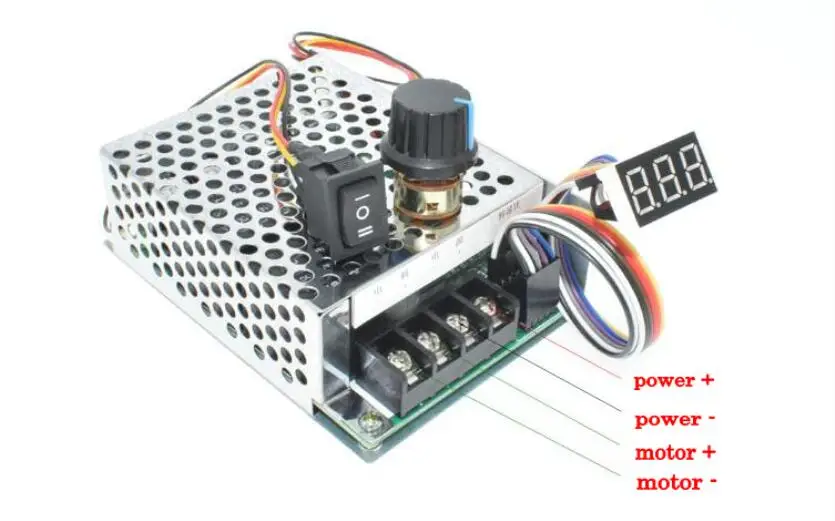

The input voltage must be positive and negative
The input voltage is within 10-55V DC to be equal to the rated voltage of the motor
