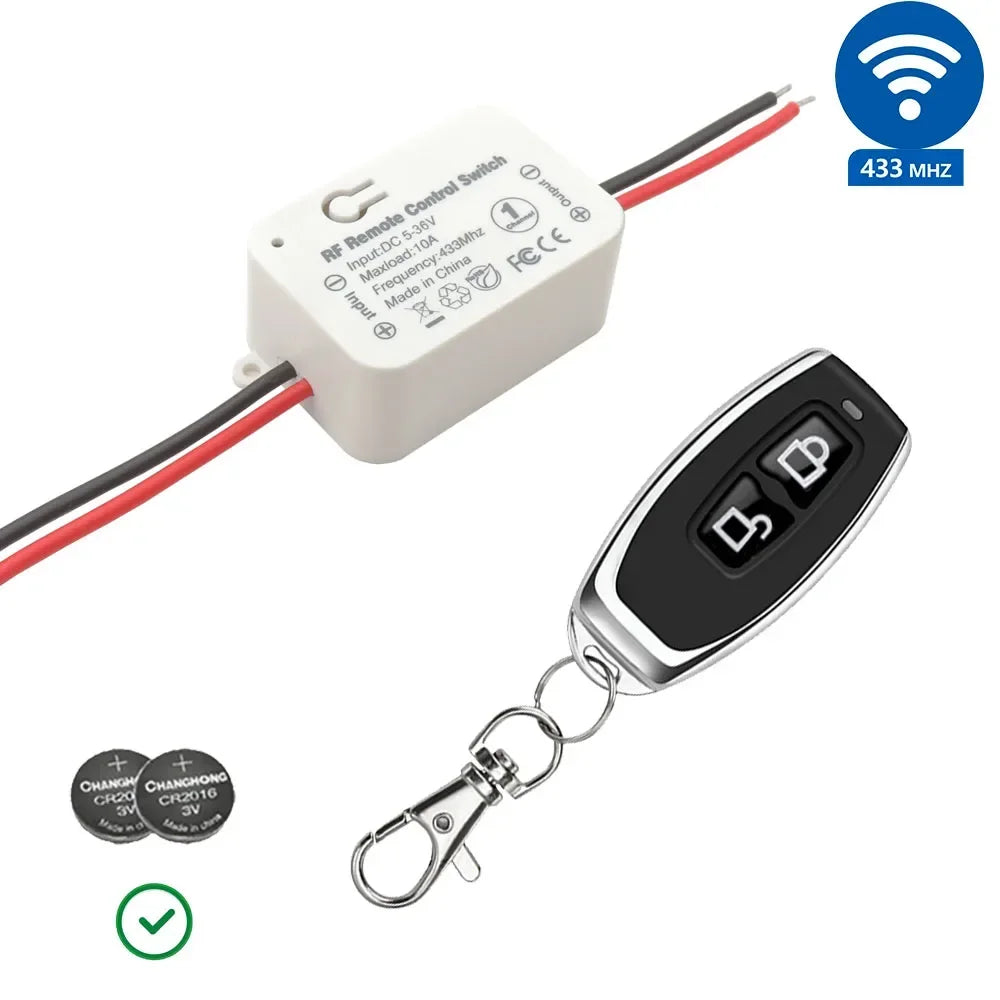

12V 24V Wireless Remote Control Switch DC RF433MHz Wet Contact Switch 10A Relay Module for Electronic Lock / LED / Bulb ON OFF

East Supplier PlatformArtikelnummer:1005005352198316-1T(AB)-CHINA

Color: 1T(AB)
Preis:
$5.58

Steuern inklusive

Aktie:
Auf Lager ( 108 Einheiten), versandbereit

Beschreibung

SPECIFICATIONS

Application 1: Home, Farm, Factory, Office, Supermarkets and so on

Application 2: Led Light Lamp Bulb Switch, Home Security Alarm System

Application 3: Heater, Fan, Fish tank, Diy Home electrical equipment and so on

Brand Name: WenQia

Certification: CQC,RoHS,CE,CCC

Choice: yes

Current: 10A

Feature: Wireless remote on off control light switch

Features: Wireless remote control,Stable signal

Is Smart Device: No

Item Type: SWITCHES

Matching mode: Intelligent Learning code 1527

Material: Plastic

Model Number: WenQia 5-30V Switch

Origin: Mainland China

Quiescent Current: less than 5mA

Receiver remote storeage: About 20pcs

Receiving sensitivity: 97dbm

Remote Distance: Up to 50m in open space

Remote battery: 2pcs CR2016/1pcs CR2032(Include)

Remote button: 2

Remote size: 60*30 mm

Switch Type: REMOTE CONTROL

Switch size: 62*36*23 mm

Switch type: On/off

Switch working frequency: 433.92MHZ

Warranty: 1 Year

Working temperature: -30 ~ +80 Celsius

Working voltage: DC 6-30V

semi_Choice: yes

Before making an order
1.This is our new RF light switch.It is Wet contact(L and N) not Dry contact(NO NC COM);
2.This new light switch can work with all remotes in our store(Not include kinetic products)

What is the difference between dry contact and wet contact?
1.Dry contact: It is one in which the power is always being supplied by another source.The port is NO NC COM port.The ouput can equal with Input, and you can connect with other power too.This means you can connect with 1-250 device
Wet contact: It is one in which the power is being supplied by the same power source that the control circuit is used to switch the contact.The port is L and N port.This means Output = Intput
2.Dry contacts are also known as "Passive" contacts.Wet contacts are known as "Active" or "Hot" contacts.

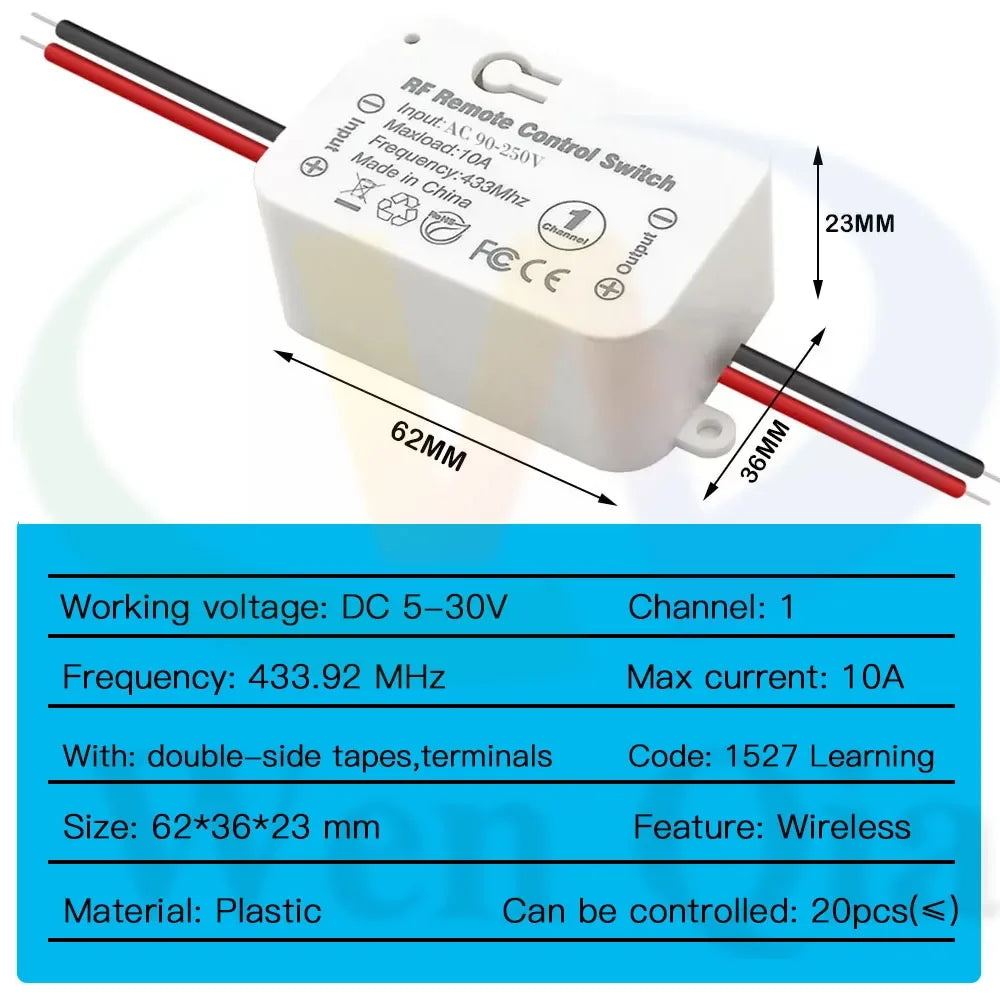

Parameter

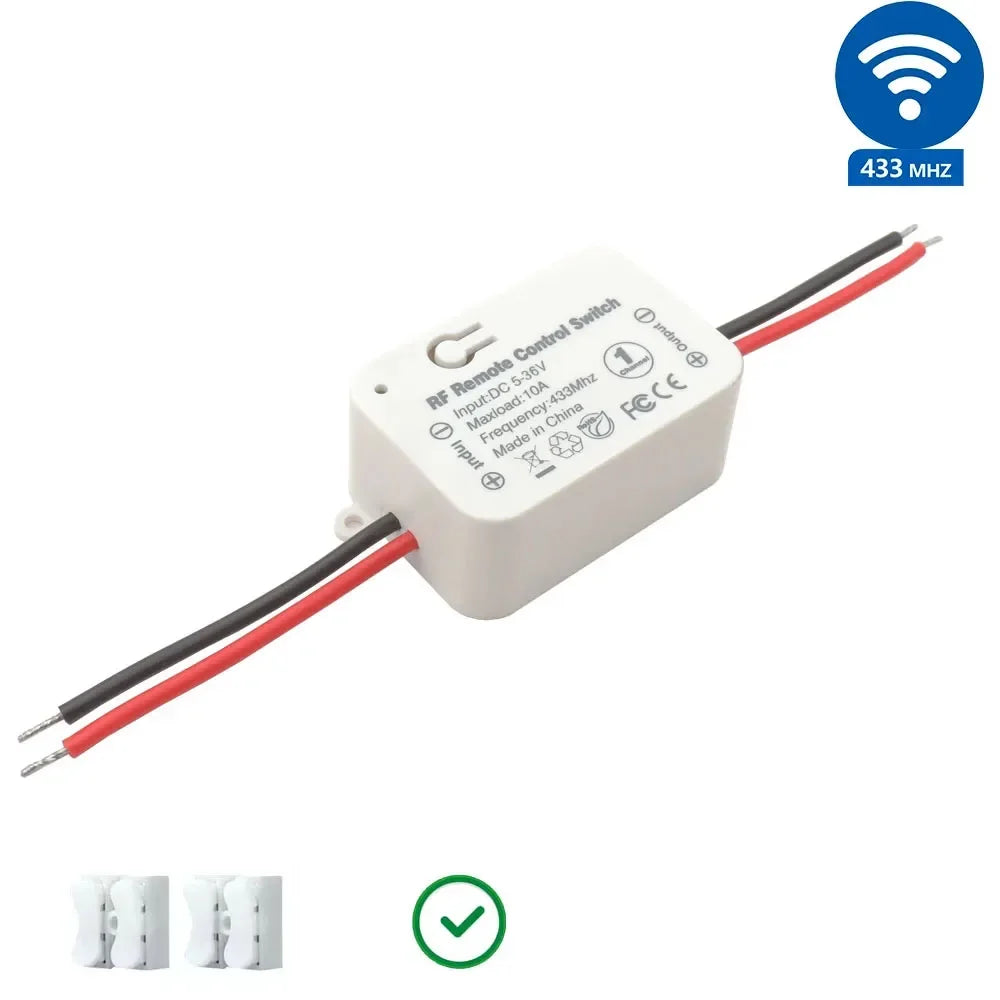

Light switch(Receiver):
Working Voltage  : DC 5~30V
Size:62*36*23mm
Output vlotage:DC 5~30V
Quiescent Current:<5MA
Max current:10A
RF frequency:433MHz
Working temperature:-30~+80
Receiving Sensitivity:>97dbm
Amount of storage remote controls:25 pieces
Support encoding:1527 Leaning code/2262 fixed code
RF Operating mode:ASK superheterodyne wireless reception
Receiving range:Open space is more than 50 meters
Remote operating mode:Momentary Mode /Toggle Mode /latched mode/Delay mode

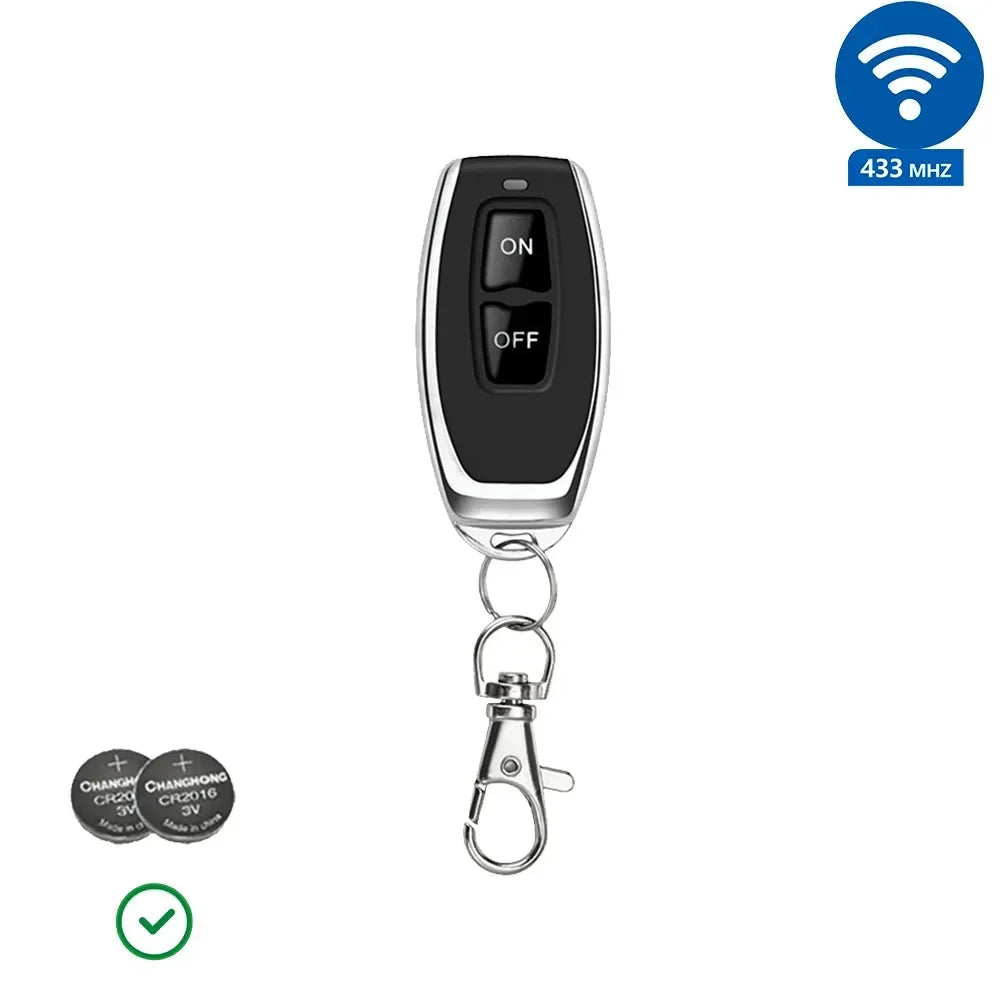

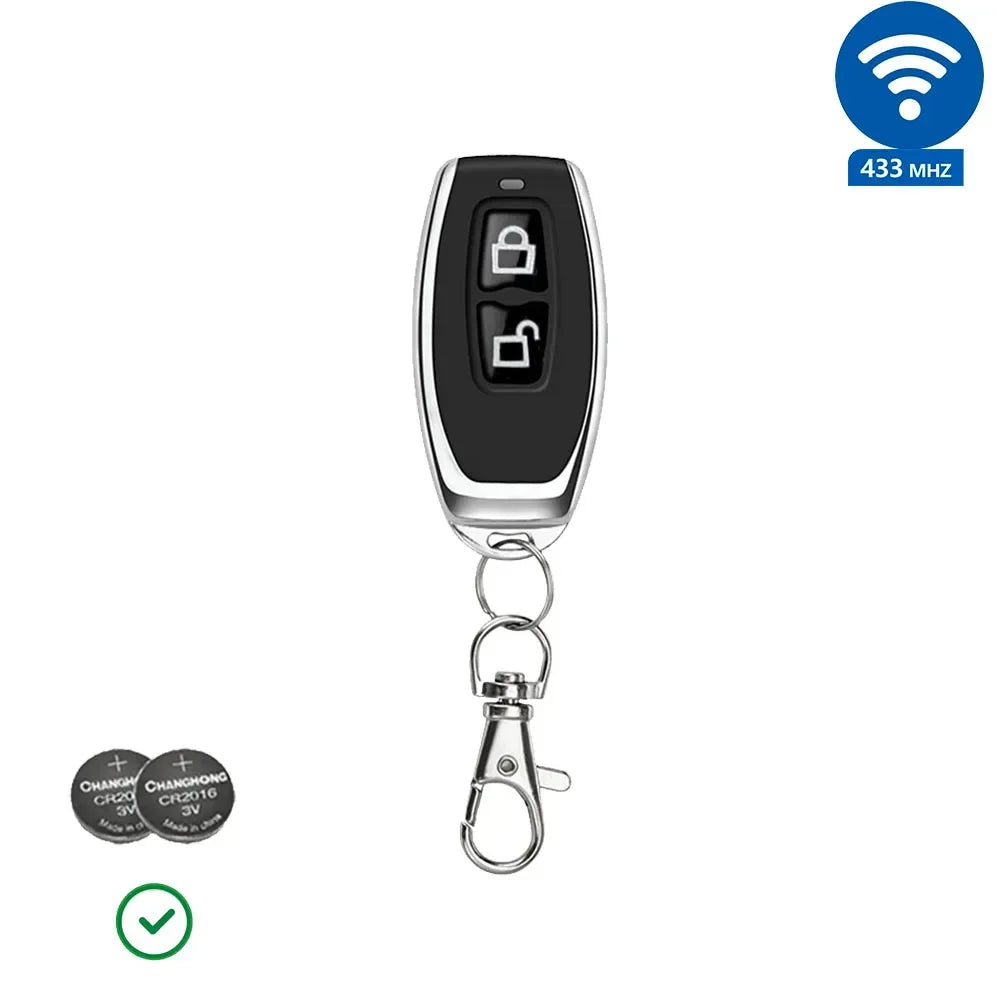

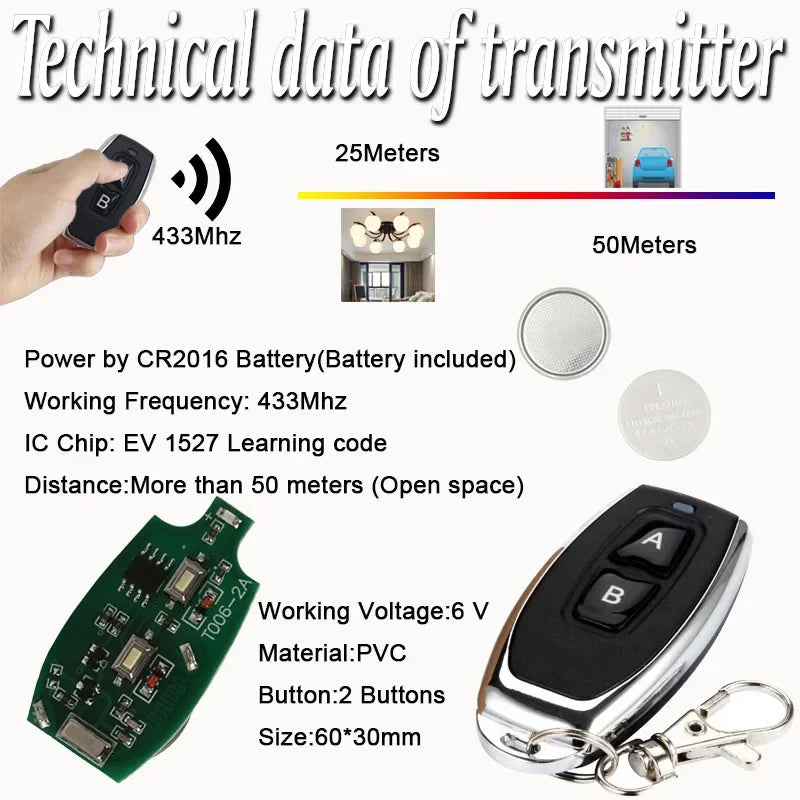

Transmitter:
Working voltage: DC 3V
Battery: 1*CR2032/2*CR2016(Include)
Size:60*30 mm
Range: Up to 50m
Code: 1527 learning
Material: PVC
Button: 2
Modulation: ASK

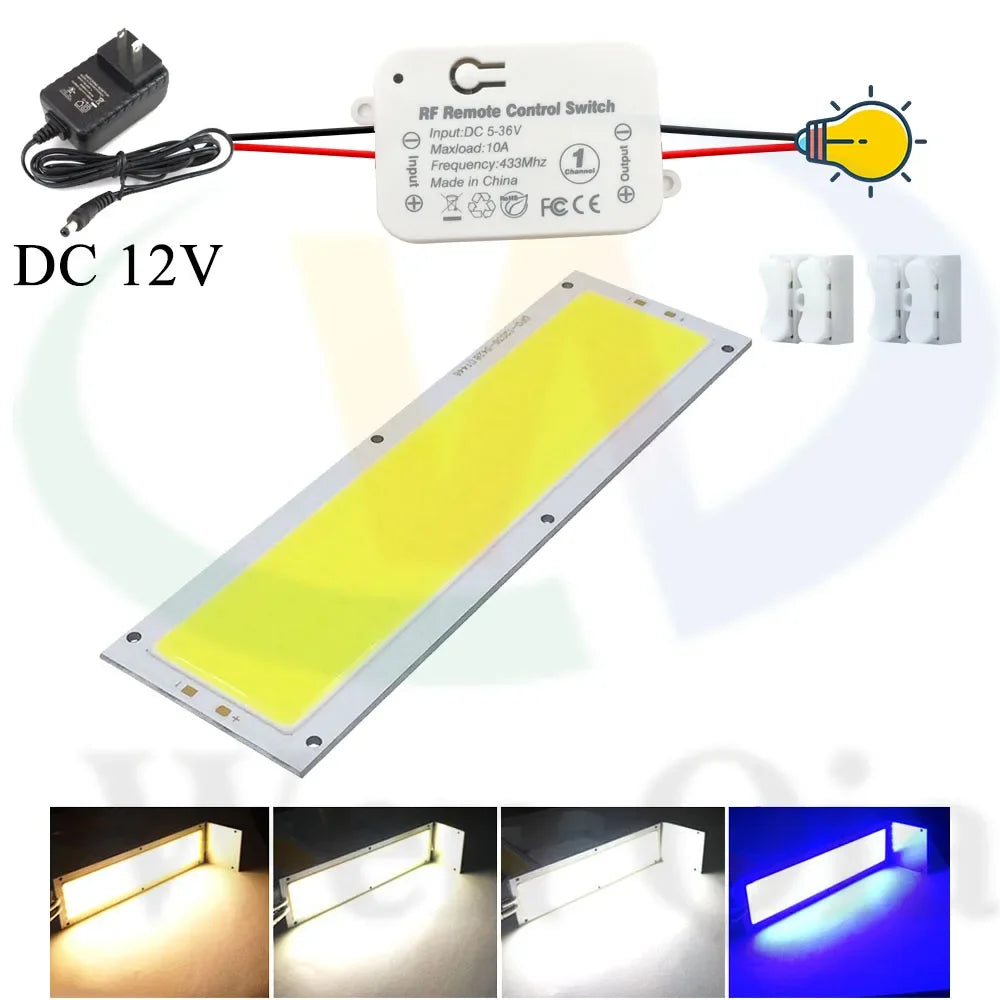

How to connect
The input and output cannot be reversed. Terminals will help you to connect well easily

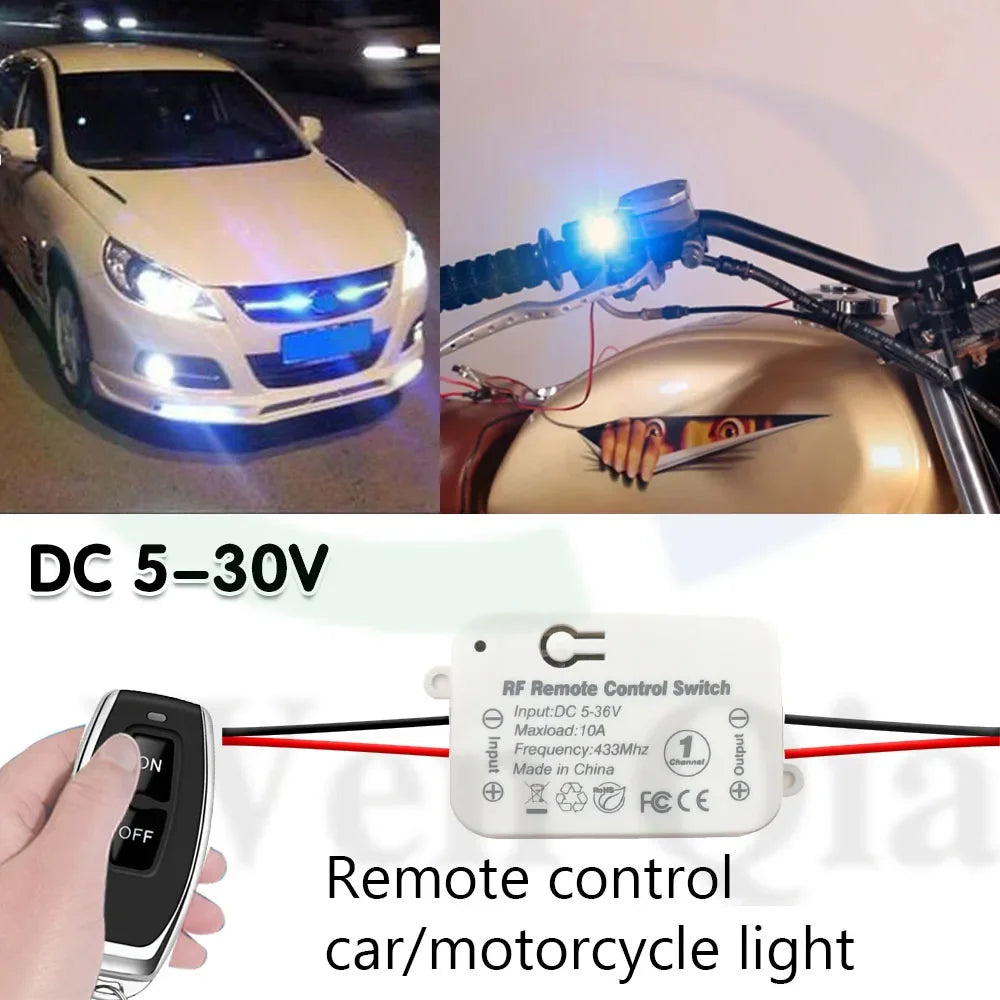

Wireless remote control LED on off

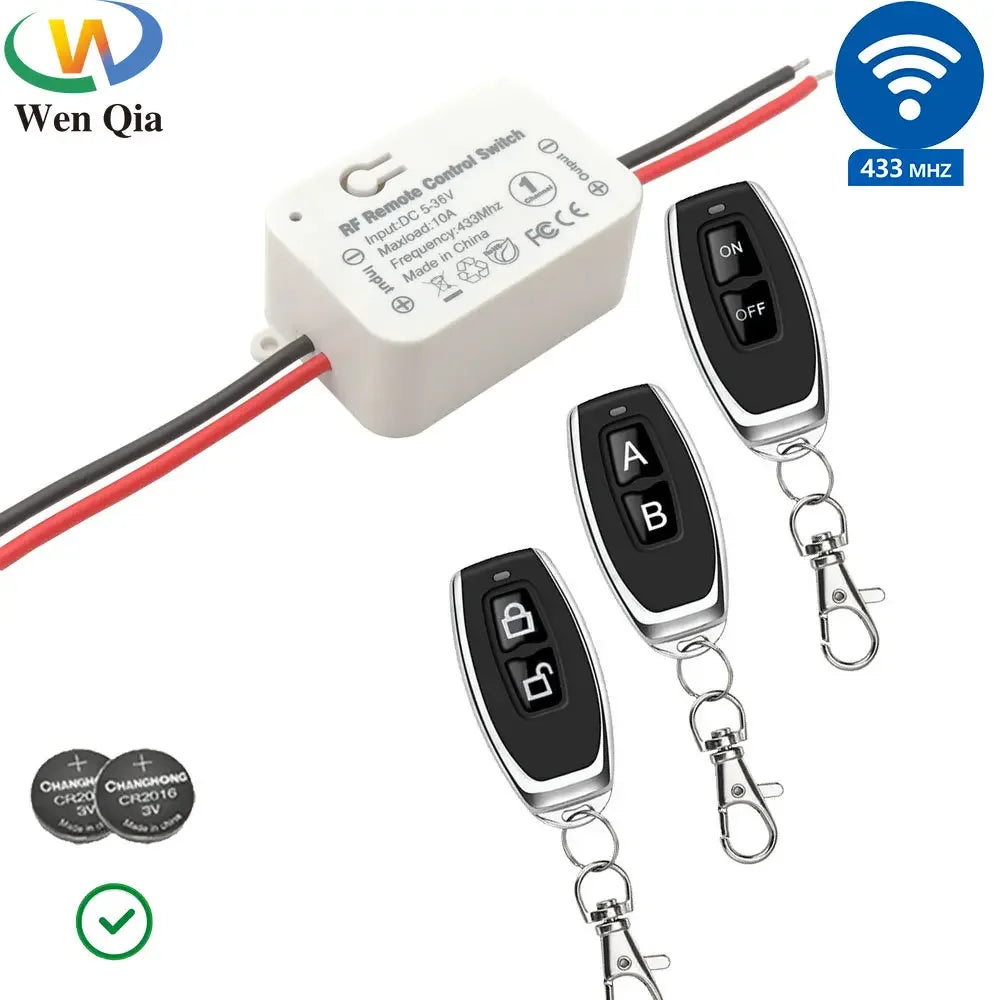

One switch can be controlled by many remotes,one remote can control many switches

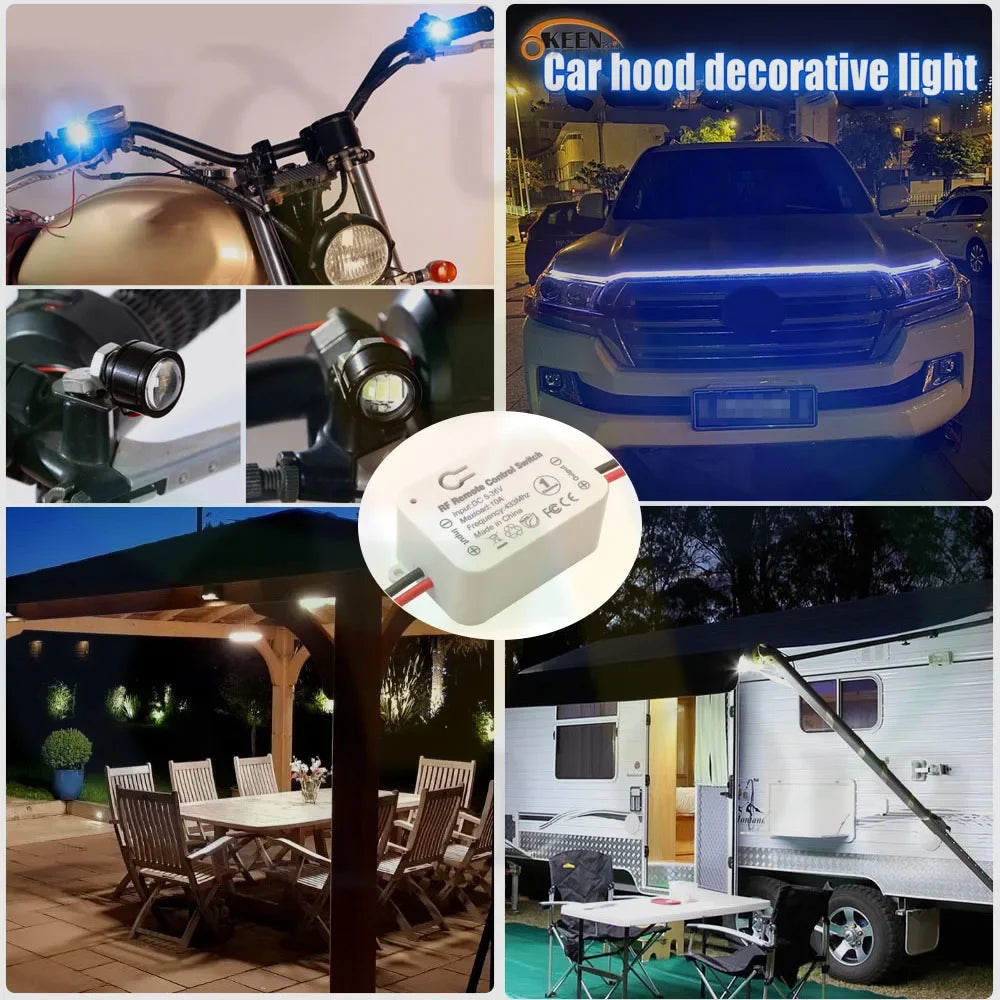

For home electric,use in many places:

Work in Rf

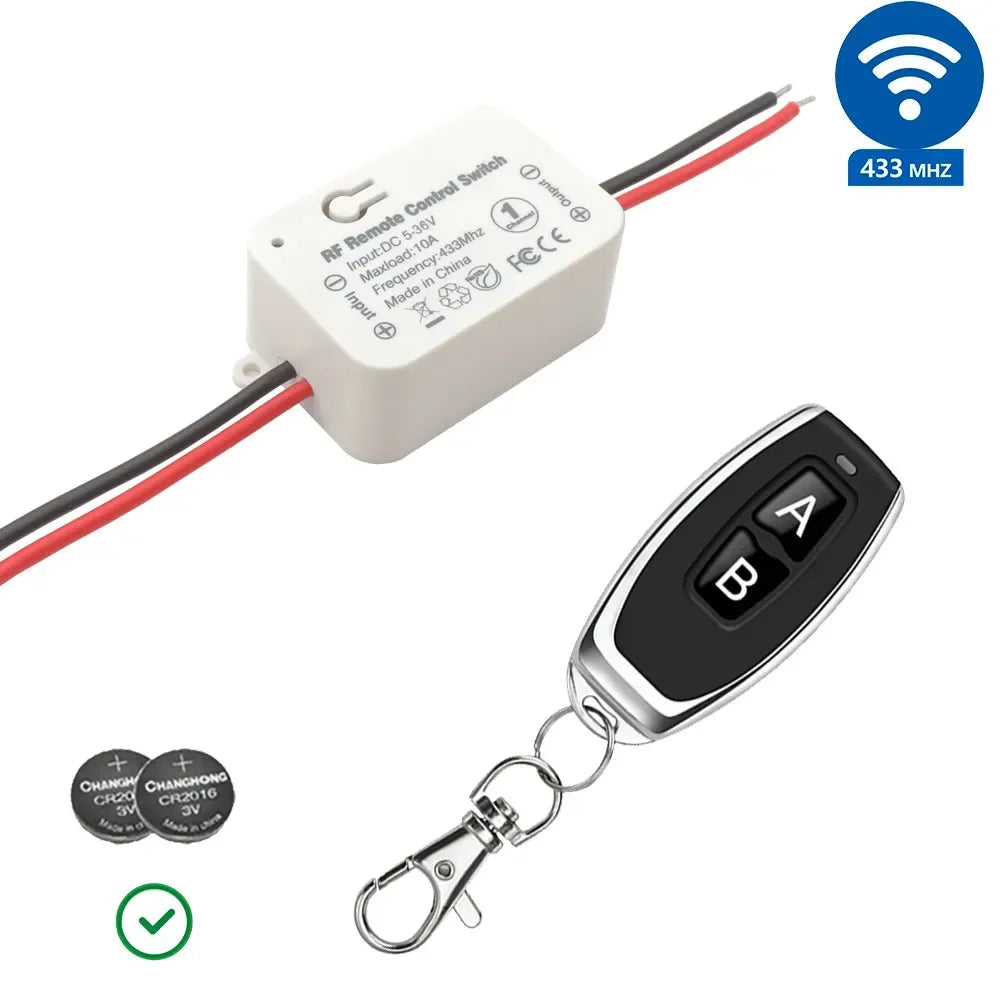

Toggle mode:

1. Press button "A", relay will turn on;
2. Press button "A" again, this relay will turn off.

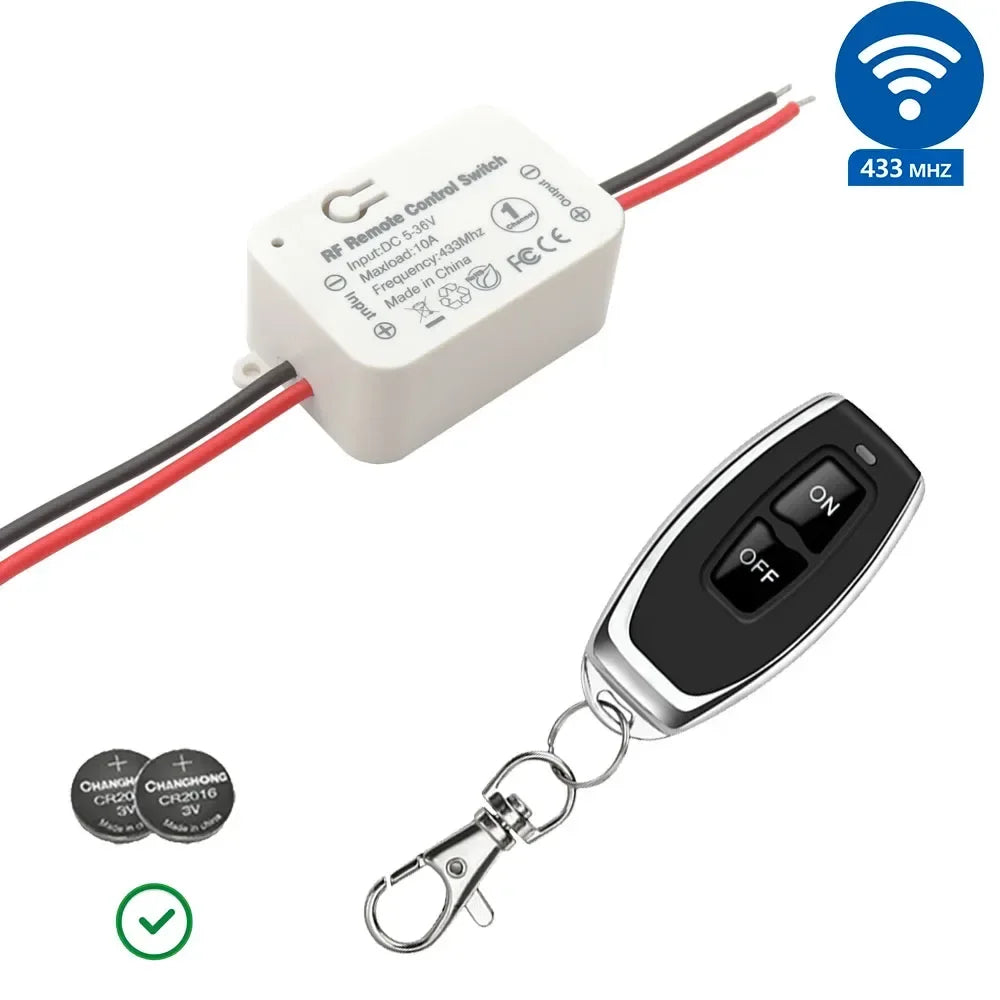

Latched mode:

1. Press button "ON", relay will turn on;
2. Press button "OFF", this relay will turn off.


How to pair with remote
1.Press learning button
3 times
2.Press remote ON button 1time,press remote OFF button 1time,
latched modesucceed.

Clean data
Press learning button 8 times. The existing data will be deleted succeed.

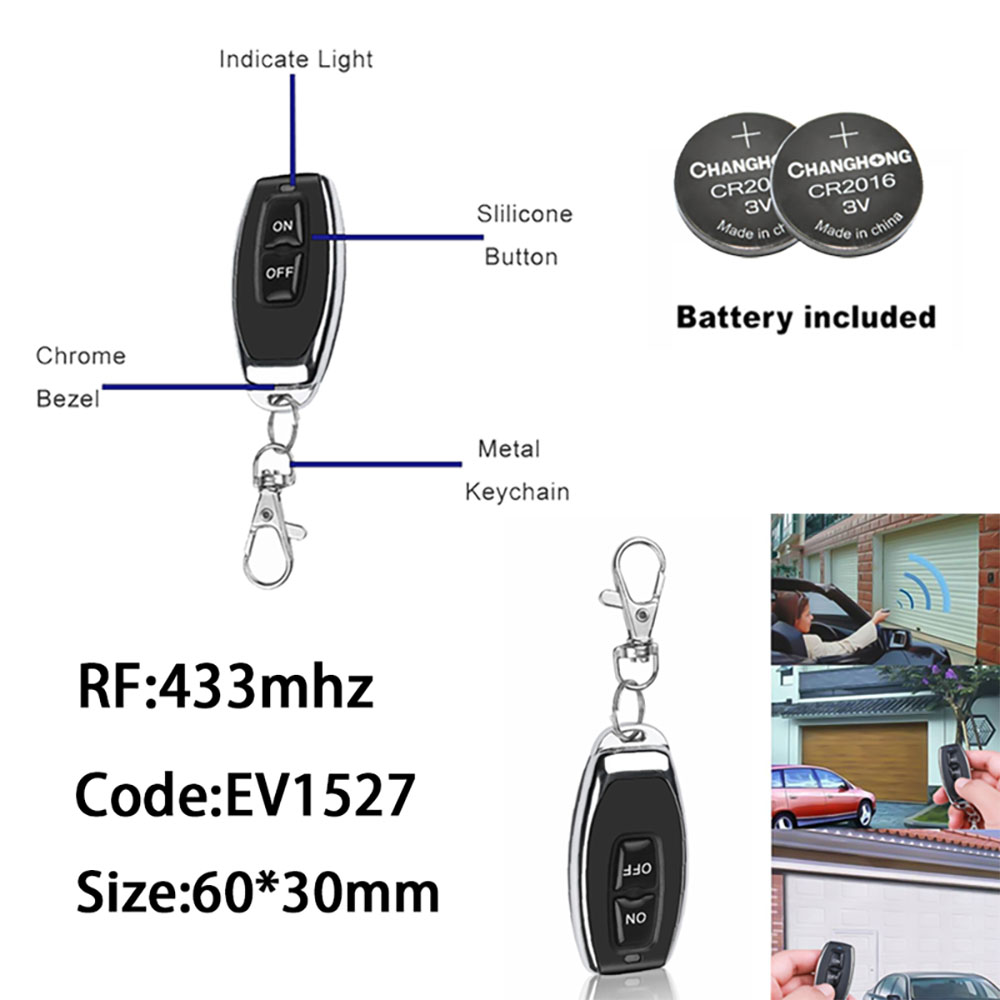

Remote Detail
Indicator light,Silicone button,Metal keychain,Chrome bezel

Qustions and Answers
1.Can i use my own remote to control this switch?
--Sir,please make sure the frequency(433mhz),Code(1527 learning) are same.
2.When the power off and comes again,what status about this switch?
--It is off sir.Default off
3.Can i use many remotes to control one switch?

--Yes,one switch can be controlled by almost 20pcs remotes


*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*

* We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you. *
