SPECIFICATIONS
Brand Name: WEP
Certification: CE
Hign-concerned Chemical: None
Model Number: 8858-IV
Origin: Mainland China
is_customized: Yes

Application
1. This unit is suitable for desoldering & soldering operations on a broadrange ofcomponents. E.g., SOIC, CHIP, QFP, PLCC BGA, SMD, and more.The unit is especially suited for desoldering operations on in-line sockets.
2. You can use this unit for heat shrinking, drying, paint removal, glueremoval, defrosting, pre-heating, glue soldering, and more.

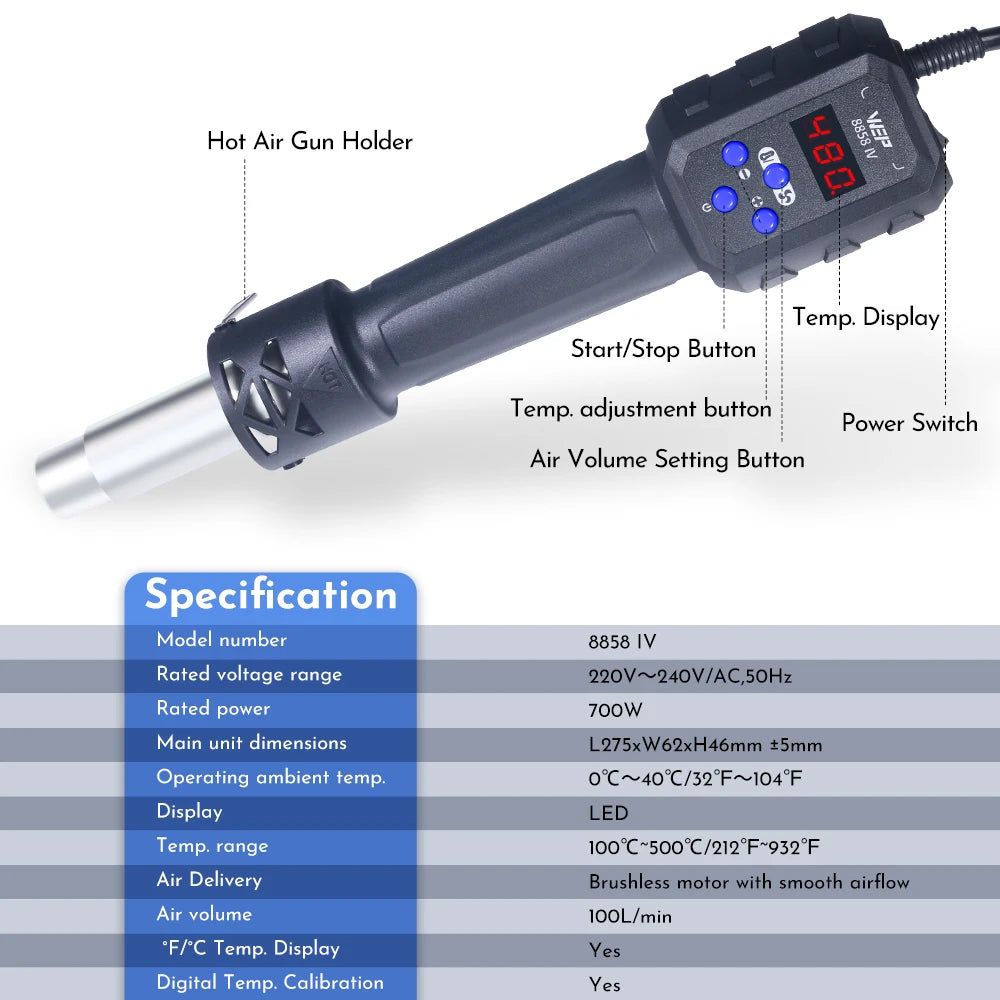

Specification
Rated voltage range:220V~240V/AC.50Hz
Rated power:700W
Main unit dimensions:L275xW62xH46mm +5mm
Display: LED
Operating ambient temp. :0°C~40°C/32F~104F
Operating ambient temp. :100°C~500°C/212°F~932°F
Air Delivery:Brushless motor with smooth airflow
Air volume:100L/min
Temperature preset function: Yes
Air volume preset function: Yes
F/C Temp. Display:Yes
Digital Temp. Calibration:Yes
Know more about 8858-IV hot air gun:

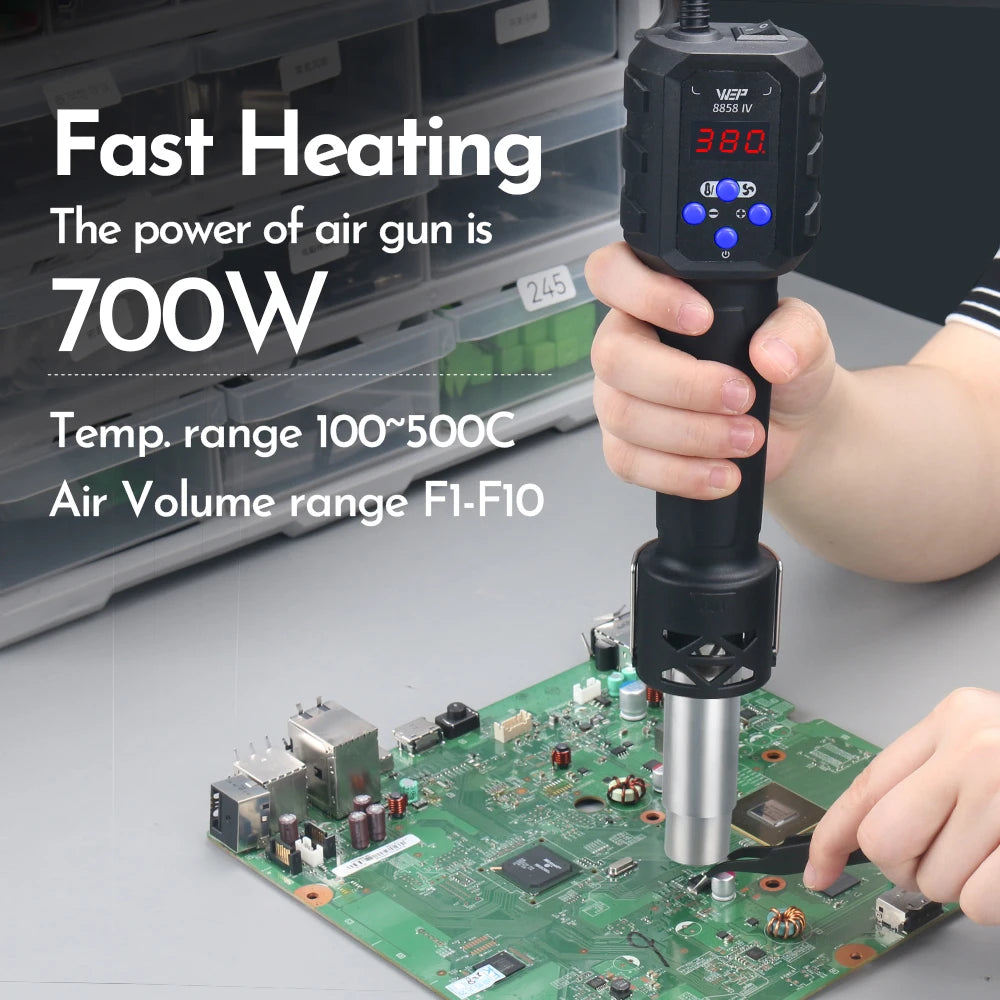

Fast heating hot air gun
with constant temperature and air volume

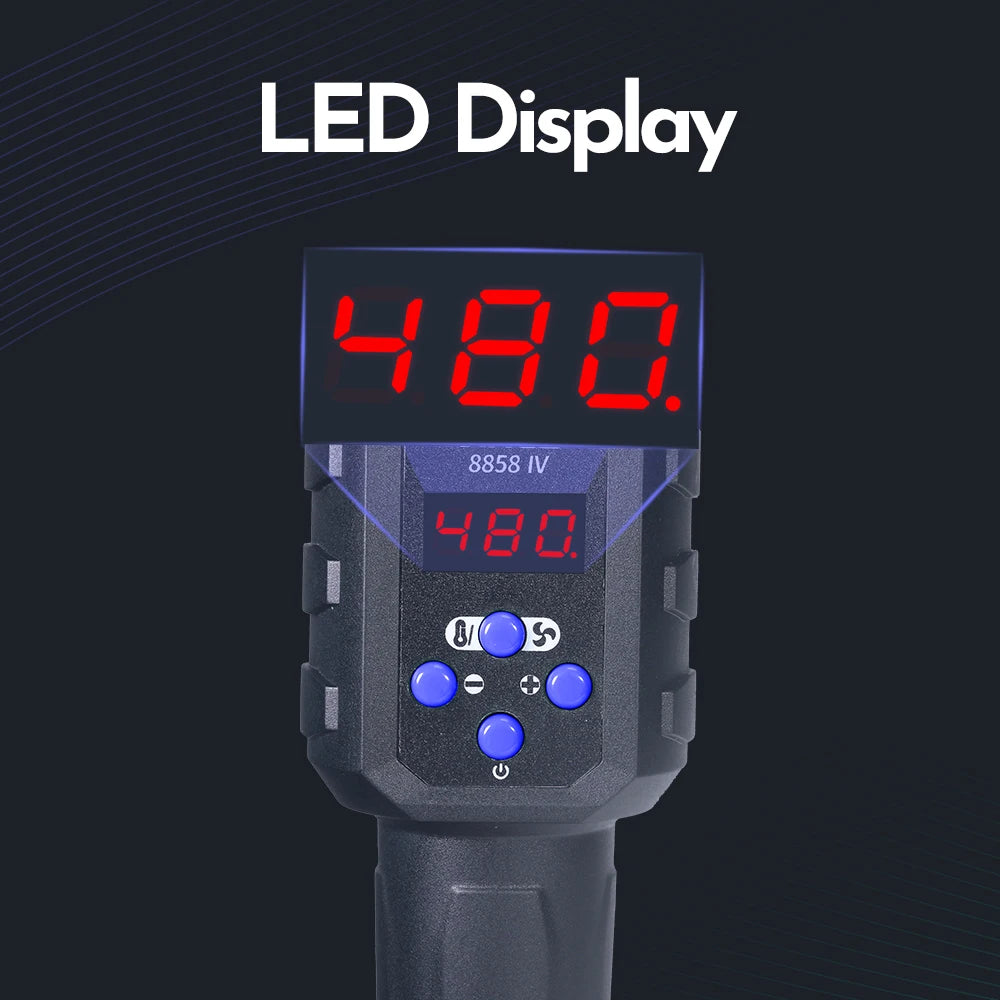

Digital Led Display
will improve the precision and accuracy of the soldering operation

Brushless motor
means that 8858-IV is noiseless, constant, long lifespan hot air gun.

How to change temperature display
1. When the power switch is not turned ON, pressand hold the temperature increase button andthen turn ON the power switch. The display willshow“C”or“F”
2. Press the temperature increase button to switchbetween the Celsius display mode and theFahrenheit display mode.
3. Once done setting, stop operating for approximately 3 seconds, the system will automaticallysave the data and exit the setting interface.-Setting complete.

How to calibrate the temperature?
1. Turn On the hot air gun. When the hot air gun's temperature has stabilized, measurethe hot air gun's actual temperature.
2. Press and hold the temperature increase and decrease button at the same time forapproximately 2 seconds and then the display will show “CAL”.
3. Press the temperature increase or decreasebutton to enter the measured temperature.Once done entering, press both buttons toconfirm the entry and the system will automati-cally calibrate the temperature and exit thesetting. - Setting complete.

Application
1. This unit is suitable for desoldering & soldering operations on a broadrange ofcomponents. E.g., SOIC, CHIP, QFP, PLCC BGA, SMD, and more.The unit is especially suited for desoldering operations on in-line sockets.
2. You can use this unit for heat shrinking, drying, paint removal, glueremoval, defrosting, pre-heating, glue soldering, and more.

Here are two options for your reference
Option 1:

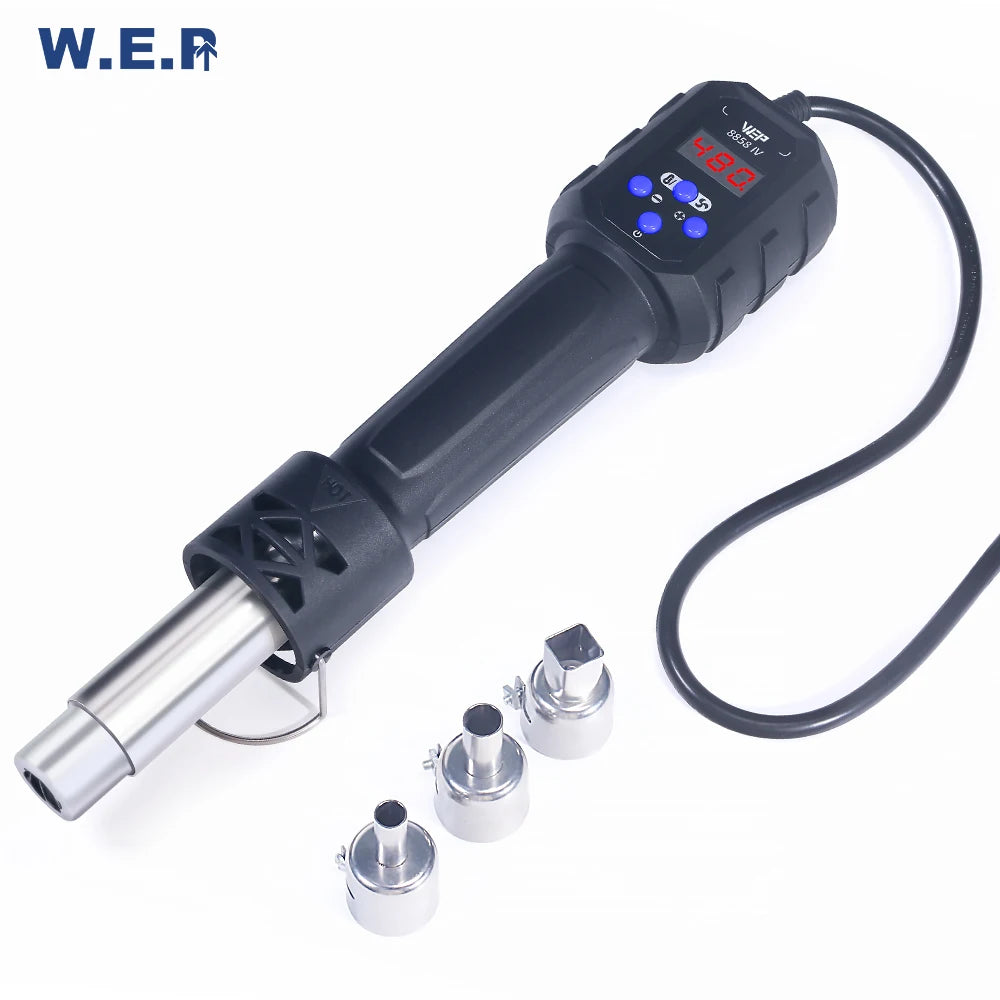

1 piece WEP 8858-IV hot air gun
3 pieces nozzles

Option 2:

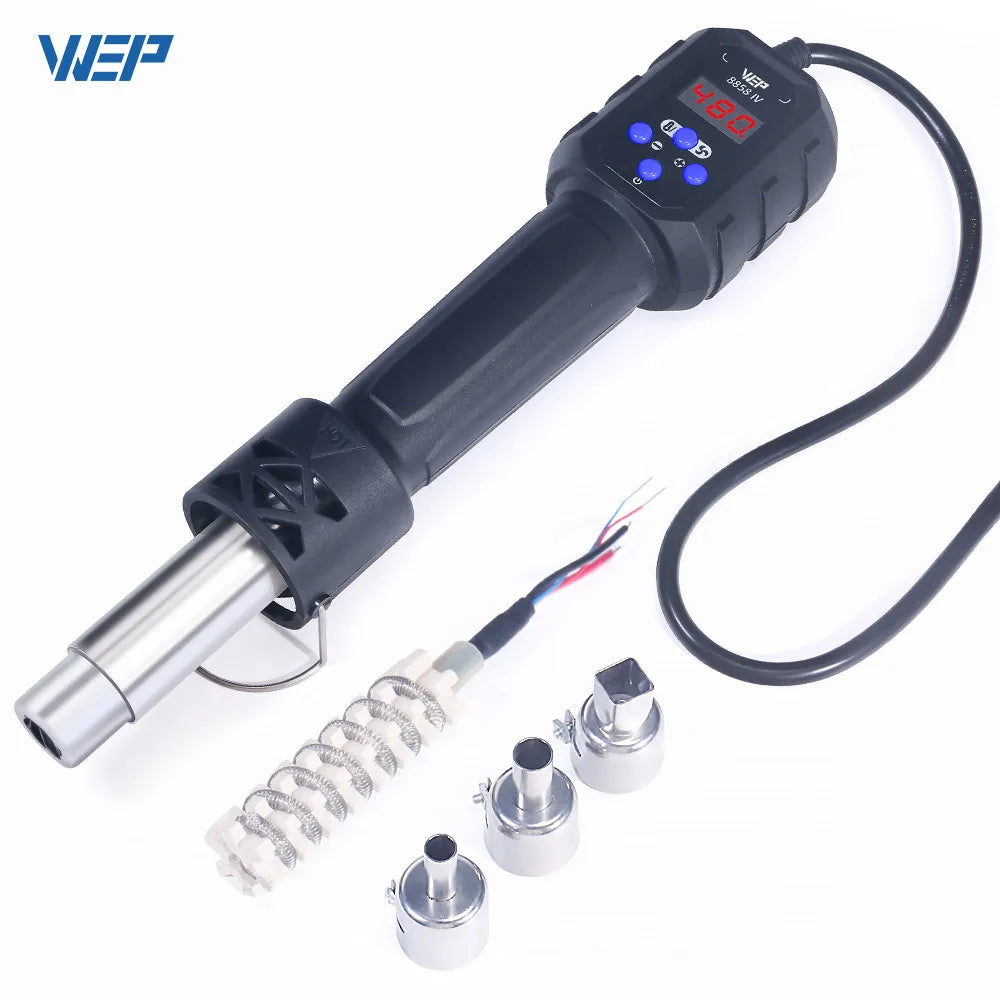

1 piece WEP 8858-IV hot air gun
3 pieces nozzles
1 piece heater
