Description
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Battery Voltage: 12V/24V/36V/48V
Brand Name: PowMr
Certification: CE
Cooling way: Forced air cooling
Feature: 0 Layer, easy to install, easy setup
Ground Type: Positive Ground
High-concerned chemical: None
Is Smart Device: No
Item: 100% MPPT technology
Maximum Current: MPPT 60A
Model Number: POW-M60-ULTRA
Origin: Mainland China
Output voltage ripple-peak: 100mv
Product name: MPPT 60A Solar Charge Controller
The maximum PV input voltage (Voc): DC160V
battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
is_customized: Yes
Note: This controller does not have a plug function.
All orders will be sent with a parallel version controller.

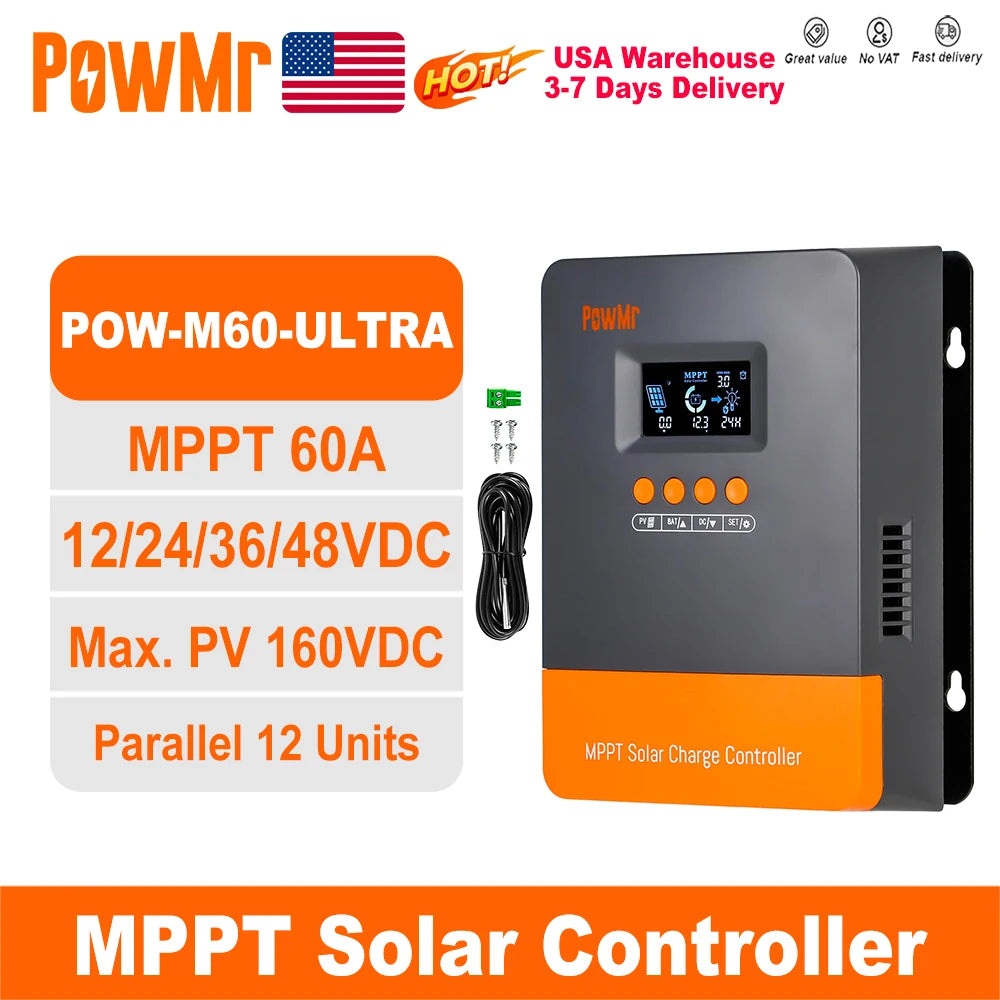

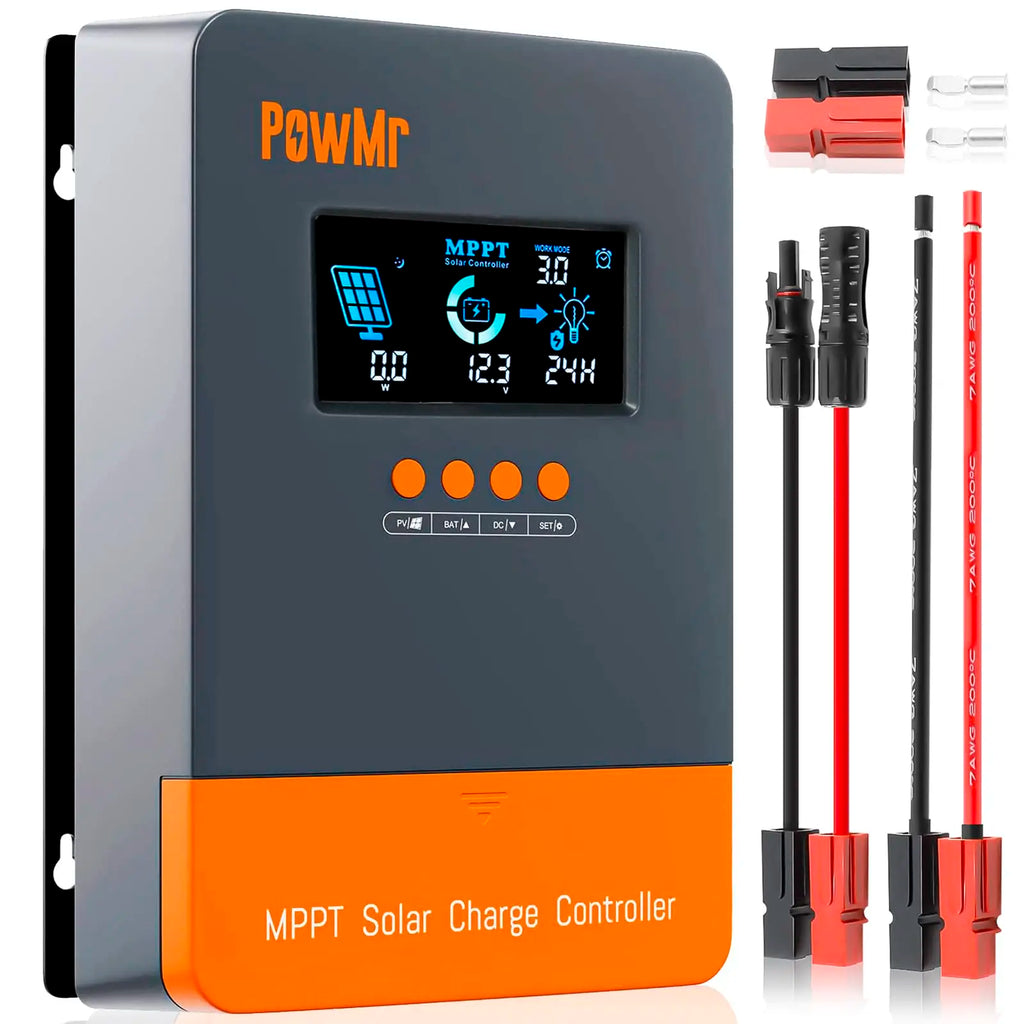

PowMr MPPT 60A Solar Charge Controller for 12/24/36/48V Battery Max 160VDC PV Panel Input With LCD Screen Can Parallel 12 Units
Overview:
PowMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.
Features:
●MPPT 30A/40A/50A/60A solar charge controller
●100% MPPT technology
●0 Layer, easy installation, easy setup
●Built-in DSP controller with high performance
●Automatic switch for 12V/24V/36V/48V battery bank

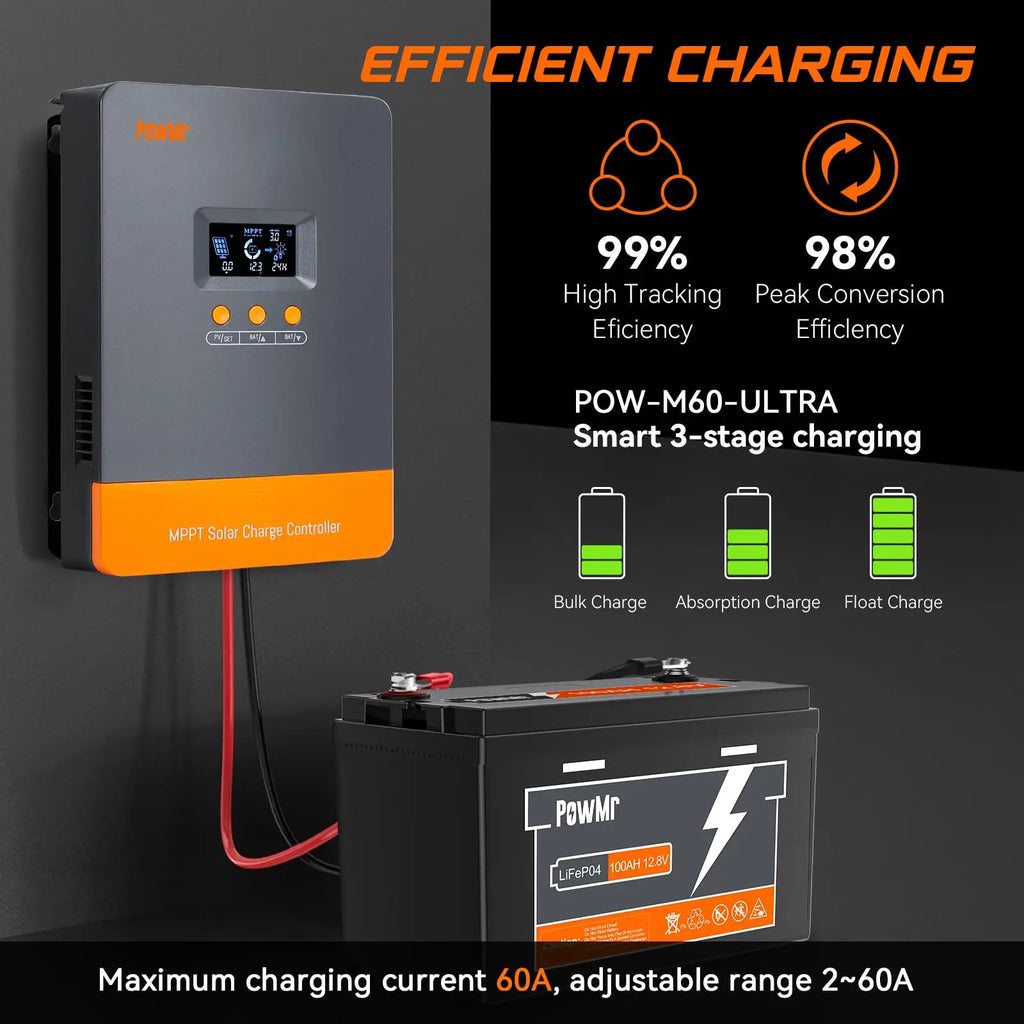

●3-stage charging optimizes battery performance
●Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
●Over-temperature protection
●Troubleshooting promotion function.
●Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
●Easy to be mounted
●Restore all data with one click
Specification:
Model |
POW-M60-ULTRA |
Picture |
|
PV Input | |
Max Open Voltage of PV Module |
160Vdc |
Max. Input Power: | |
For 12V system |
720W 20-80Vdc; |
For 24V system |
1440W 37-105Vdc; |
For 36V system |
2100W 50-160Vdc; |
For 48V system |
2800W 72-160Vdc. |
Charge Mode | |
Charging Technology |
MPPT |
Charge Algorithm |
3-Stage |
Nominal System Voltage |
12V/24V/36V/48V |
Battery Voltage Range |
9~70V |
Rated Charging Current |
60A |
Conversion Efficiency |
≤98% |
MPP Tracking Efficiency |
>99% |
Self-consumption |
0.7W-1.2W |
DC output | |
Rated Output Current |
6A |
Max. DC Output Current |
8A |
Max. Capacitive Load Capacity |
10000µF |
Environment | |
Operating Temperature Range |
-35℃~+45℃ |
Humidity Range |
≤95%,Non-condensing |
Altitude |
<3000m |
General Specification | |
Protection Class |
IP32 |
Dimension |
230*165*72mm (9.1*6.5*2.8in) |
Net Weight |
1.33kg (2.9lbs) |
Product Overview:
