Description
SPECIFICATIONS
Temperature of Media: Low Temperature
Structure: control
Standard or Nonstandard: Standard
Pressure: Low Pressure
Power Source: DC
Power: Manual

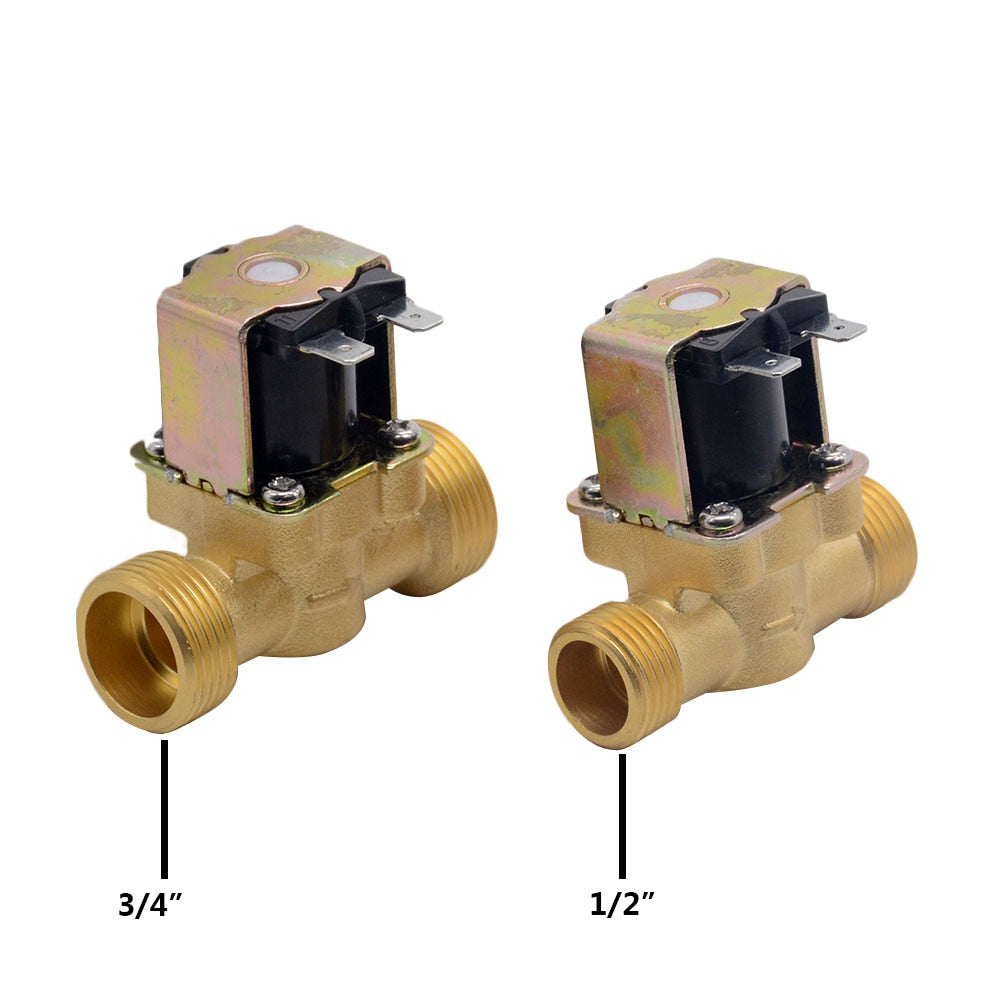

Port Size: 3/4 1/2
Origin: Mainland China
NC or NO: Normally Closed
Model Number: DC 24V AC 220V DC12V
Media: Water
Material: Alloy
Actuator Mode: Without Manual And Instruction

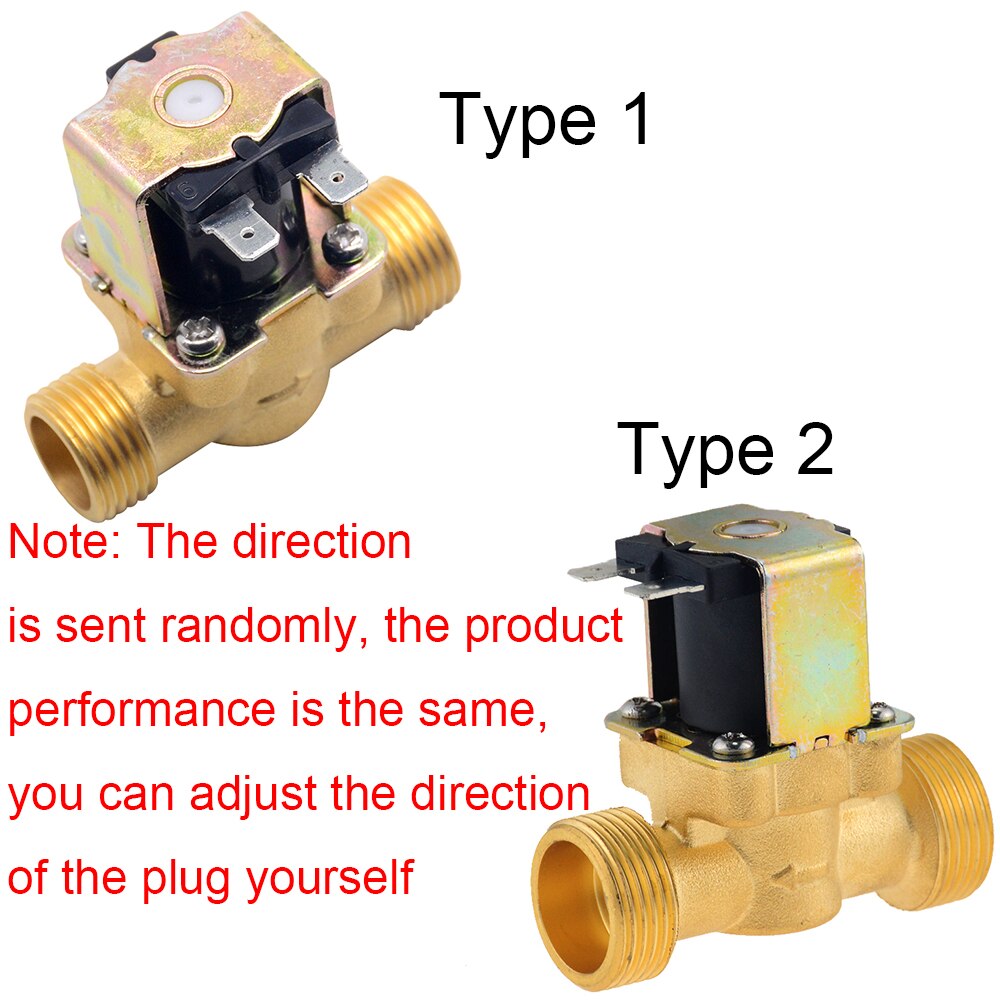

Note: The direction is sent randomly, the product performance is the same, you can adjust the direction of the plug yourself
Specification:
Valve Body: Brass
Size: Approx. 6 * 6.4cm / 2.4 * 2.5inch
Operating Altitude: ≤2500m / 8202ft
Operating Temperature: 0 - 40℃
Operating Humidity: <95% (at 25℃)
Type: Guide (One-way) Solenoid Valve
Rated Voltage: AC 220V/ DC 24V
Operating Mode: Short-time Quota System
Insulation Grade: E
Fluid: Water
Fluid: Temperature: 0℃ - 55℃
Water Pressure: 0.02 - 0.8MPa
Water Flow Features:
Water Pressure (Mpa): 0.02, 0.1, 0.3, 0.8
Flow (L/min): > 5 > 11 >18 > 32
Lifespan: >100,000 Times
Features:
No power consumption, having direct stability of water adjust.
Brass brass casting structure is and reliable hard-wearing, anti-corrosion and precise.
Pressure regulating valve (steady flow valve) function similar to water flow switch.
This solenoid valve not only can keep the constant current steady flow, but also prevent the dry burning and monitoring the flow.
Easy to install and maintain.
